How to Improve Process Control in Semiconductor Equipment Assembly

Semiconductor equipment assembly often involves numerous fastening points, product variants, and manual operations across multiple workstations. Even when an accurate tightening tool is used, errors can still occur: a fastener may be missed or tightened twice, the wrong program or socket may be selected, or an NOK result may not be handled correctly.

These problems usually arise because the workstation verifies the tightening result but not the entire operating process. Effective process control must also confirm that the tool is at the correct position, the required sequence is followed, and each result is linked to the corresponding product or component.

Here, process control refers specifically to fastening workstations rather than wafer manufacturing parameters such as temperature, pressure, or gas flow. This article explains how tool support, position detection, program and accessory management, and result traceability can help you build a more stable and verifiable fastening process.

What Does Process Control Mean in Semiconductor Equipment Assembly?

In semiconductor equipment assembly, process control does not refer to parameters such as temperature, pressure, vacuum, or gas flow during wafer manufacturing. In this article, it refers specifically to how you manage and verify the product, tool, program, fastening position, operating sequence, and tightening results at a manual assembly workstation.

The objective is not simply to provide operators with assembly instructions. Your system must also verify whether each operation is performed under the correct conditions. Before tightening begins, it should identify the product being assembled and confirm that the correct tightening program, socket, or bit has been selected. During tightening, it should verify that the tool has reached the correct fastener and that the required sequence is being followed. After each operation, it should evaluate the OK or NOK result and determine whether the operator can proceed to the next step.

A complete fastening process control system typically verifies:

• Whether the current product matches the selected tightening program;
• Whether the correct tool, socket, or bit is being used;
• Whether the tool has reached the specified fastening position;
• Whether each fastening point is completed in the required sequence;
• Whether any fastener has been missed, tightened twice, or tightened at the wrong position;
• Whether the torque or angle result falls within the specified range;
• Whether a NOK result has been handled correctly rather than bypassed;
• Whether each tightening result can be linked to the corresponding equipment, component, or production batch.

A valid torque result alone does not prove that the entire assembly process has been completed correctly. For example, if you apply the correct torque to the wrong fastener or use a program that does not match the current connection, the tightening tool may still return an OK result. Effective process control must therefore verify not only the final torque value, but also which program was used, where the operation occurred, and what result was obtained.

This does not mean that every workstation must be fully automated. Operators can still move the tool, align it with the fastener, and perform the tightening operation. The system supports these manual tasks through position detection, program interlocking, accessory selection, status feedback, and result recording.

By introducing these controls, you can turn a fastening process that depends heavily on operator memory and experience into a rule-based workflow in which every critical step is guided, verified, and recorded.

Why Is Semiconductor Equipment Assembly Difficult to Control?

Semiconductor equipment assembly is rarely a simple task involving a single tool and a few fasteners. It often includes multiple modules, workstations, and operating steps. As the number of fastening points, product variants, and operators increases, you must control more than torque alone. Programs, fastening positions, operating sequences, accessory selection, and tightening results must also remain consistent throughout the process.

The following characteristics make manual fastening in semiconductor equipment assembly particularly difficult to control.

Numerous Fastening Points with Complex Layouts

A semiconductor machine may include frames, chambers, piping systems, control modules, protective structures, and other assemblies. Fastening points can be distributed across the front, sides, interior, and confined areas of the equipment, while some locations may look almost identical.

When operators must move the tool across a large working area, it becomes difficult to keep track of progress. Without position detection or point-by-point status monitoring, you may have to rely on memory, visual markings, or manual records to determine which fasteners have been completed and which still require attention.

Long Assembly Cycles and Multiple-Operator Handoffs

Complex equipment assembly may extend across several workstations, shifts, or even longer production periods. Different operators may be responsible for separate modules, or one operator may need to continue a task left unfinished by the previous shift.

If the workstation displays only the total number of completed fastening operations without recording the specific positions and results, the next operator may struggle to determine the actual progress. Interruptions, shift handovers, and temporary rework can all increase the risk of missed or repeated tightening.

Different Positions May Require Different Tightening Parameters

A single piece of equipment may contain fasteners with different sizes, materials, and functional requirements. As a result, the required torque, angle, or tightening program may vary from one fastening point to another.

Even if your tightening tool executes each selected program accurately, an incorrect program can still produce an unacceptable joint. This risk becomes greater when several product variants share the same workstation and operators must select programs manually. The tool may return an OK result, but the result is meaningless if the program does not match the current fastening position.

Sockets and Bits Can Be Selected Incorrectly

When a workstation uses multiple sockets or bits, operators must identify not only the current assembly step but also the correct accessory for that step. Similar-looking accessories can easily be confused, while a conventional tool rack can store them but cannot verify which one has actually been selected.

In some cases, the wrong accessory prevents the operation from being completed. In others, the tool may still run but damage the fastener, reduce positioning stability, or allow tightening at an incorrect location. Accessory selection should therefore be treated as a controlled process variable rather than a separate tool-management issue.

Confined Spaces Make Positioning and Operation More Difficult

The interior of semiconductor equipment often contains pipes, cables, frames, and other structural components that restrict access to fastening points. Operators may need to change the tool angle, reach deep inside the equipment, or align the socket while visibility is limited.

Under these conditions, tool weight and reaction torque can further reduce operating stability. Without suitable tool support, an operator may sacrifice positioning accuracy to maintain an awkward posture. Repeated work in these positions also increases fatigue, making consistent operation more difficult over time.

High-Mix, Low-Volume Production Increases Changeover Risks

Semiconductor equipment is often produced in multiple configurations or customized to meet specific customer requirements. Two machines may appear similar while using different numbers of fastening points, operating sequences, or tightening programs.

During a product changeover, the program, accessories, and work instructions must all be updated for the new configuration. If these elements are not changed together, operators may continue following the procedure used for the previous model.

The issue is not that the operator does not know how to tighten a fastener. The workstation simply lacks a mechanism that automatically loads and verifies the correct process for the product currently being assembled.

Semiconductor equipment assembly is therefore difficult to control not merely because it contains many steps, but because the product, program, position, sequence, accessories, results, and operators must remain correctly aligned. If any one of these elements is not verified, errors may remain in the assembly even when the tightening tool reports an OK result.

Which Fastening Errors Should Process Control Prevent?

In semiconductor equipment assembly, process control is not intended to eliminate every manual operation. Its purpose is to prevent errors that cannot be controlled consistently through operator memory and final inspection alone. You need to verify not only whether each fastener has been tightened, but also whether the position, program, sequence, accessory, and tightening result all match the process requirements.

Below is a summary table of common fastening errors.

Missed and Repeated Tightening

When a workstation contains numerous fastening points spread across a large area, operators may find it difficult to remember which positions have already been completed. Leaving the workstation temporarily, responding to a tool alarm, replacing a component, or handing the task over to another shift can all interrupt the normal operating sequence.

A missed fastener leaves a connection incomplete. Repeated tightening, by contrast, applies another load to a fastener that has already reached its target, increasing the risk of overtightening, thread damage, or component deformation.

Simply recording the total number of tightening operations is not enough. Your system must also identify which specific positions have been completed.

Position detection can associate the tool’s location with predefined fastening points. Instead of only counting operations, the system can verify that tightening is taking place at the correct position and determine whether that point has already received an OK result. This helps reduce both missed and repeated tightening.

Incorrect Tightening Sequence

Some components must be tightened in a specified sequence to develop an even clamping force. This may involve working from the center outward, following a cross pattern, or increasing torque in several stages.

If the operator changes the required sequence, the load may be distributed unevenly across the component. This can affect structural alignment, sealing performance, or the amount of component deformation.

Printed or on-screen work instructions can show operators the correct sequence, but they cannot confirm which fastener has actually been tightened. To verify the sequence, your system must know both where the tool is currently located and which position should be completed next.

If the tool enters the wrong fastening area, the system can temporarily disable it or prompt the operator to return to the correct position.

Use of the Wrong Tightening Program

An OK result is meaningful only when the correct tightening program has been used at the correct position. If an operator selects the wrong program, the tool may still run normally and return an OK result, even though the applied torque or angle does not meet the requirements of that joint.

This risk becomes particularly significant in high-mix, low-volume production, where several product variants may share the same workstation.

A more reliable approach is to select the tightening program automatically according to the current product, assembly step, or tool position. This reduces the need for operators to search for and select parameters manually while ensuring that each fastening point receives the intended tightening settings.

Selection of the Wrong Socket or Bit

When multiple sockets or bits are used at the same workstation, accessory selection becomes part of the controlled assembly process.

An incorrect accessory may not engage properly with the fastener. In other cases, the tool may still operate, but the wrong socket or bit can damage the fastener surface, cause slipping, or make tool positioning unstable.

A conventional tool rack can organize accessories, but it cannot confirm which one the operator has selected. A smart socket or bit selector can guide the operator to the accessory required for the current step. Depending on the configuration, it can also detect an incorrect selection, issue a warning, or prevent the tightening tool from operating until the correct accessory has been removed.

NOK Results That Are Not Handled Correctly

A tightening tool returning a NOK result does not mean that the problem has been resolved. If the warning is not obvious or the workstation allows the operator to proceed immediately, the defective joint may remain in the assembled equipment.

Your process control system should therefore define what must happen after a NOK result. Depending on the application, the response may include:

• Repeating the tightening operation under controlled conditions;
• Transferring the component to a defined rework process;
• Requiring supervisor or quality-team authorization;
• Preventing subsequent fastening steps until the issue is resolved.

Lights and on-screen messages can help operators recognize the current status. However, the more important function is preventing an abnormal result from being unintentionally bypassed.

Lack of Traceable Records for Completed Operations

If you can see only an overall pass status after assembly, it may be difficult to determine which program was used at a particular position, whether the result was acceptable, when the operation was completed, or whether the joint underwent rework.

Point-level records are not intended only to assign responsibility after a problem occurs. They can also help you analyze:

• How frequently NOK results occur;
• Which fastening points repeatedly cause problems;
• Whether results differ between product variants;
• Whether the workstation process or parameters need adjustment;
• Which points have been completed when a task is handed over.

For semiconductor equipment with long assembly cycles and multiple operators, these records also provide a clearer view of production progress and shift-handover status.

All these errors have one characteristic in common: improving the accuracy of the tightening tool alone cannot fully prevent them. To verify that each fastening operation has been completed under the correct conditions, you must connect product identification, program selection, accessory control, tool position, operating sequence, and OK/NOK results within the same controlled process.

Why Are Work Instructions and Manual Inspection Not Enough?

Work instructions and manual inspections remain important parts of quality management in semiconductor equipment assembly. However, they are mainly used to communicate requirements and identify certain defects. They cannot continuously verify whether every fastening operation has been completed as specified.

As the number of fastening points, tightening programs, and accessories increases, relying on these methods alone makes it difficult to maintain complete control over the fastening process.

Work Instructions Explain What Should Be Done but Cannot Verify the Actual Operation

Work instructions can tell an operator which tool to use, what torque to apply, and which tightening sequence to follow. However, they cannot confirm whether the actual operation matches those requirements.

For example, the instructions may specify Program A for the current fastening point, but the operator could accidentally select Program B. The screen may show the next required position, while the tool is applied to an adjacent fastener instead. Unless your workstation links the product, tightening program, and tool position, these deviations cannot be identified in real time.

In other words, work instructions guide the operation, while process control verifies that the operation has actually been performed correctly.

Final Inspection Cannot Reconstruct the Entire Fastening Process

Manual inspection usually takes place after a module or assembly stage has been completed. An inspector may be able to identify obvious problems such as a missing fastener, an incorrectly installed component, or visible surface damage. However, visual inspection alone cannot reliably determine:

• Whether the correct tightening program was used;
• Whether the specified torque and angle were achieved;
• Whether the fastening points were completed in the required sequence;
• Whether a particular fastener was tightened more than once;
• Whether an NOK result went through the required rework procedure.

A fastener that appears normal may have been tightened with an unsuitable program. Similarly, a completed assembly may contain undocumented rework operations.

Therefore, an acceptable final appearance does not necessarily prove that the entire fastening process was performed correctly.

Adding More Manual Inspections Does Not Eliminate Human Limitations

Introducing a second or even third layer of manual inspection can help identify more defects. However, inspectors are still affected by attention limits, fatigue, time pressure, and restricted visibility.

When equipment contains numerous fasteners that look similar and are positioned close together, inspectors may have to rely on visual markings, paper records, or personal experience to determine which points have been completed. If the original records are incomplete or inaccurate, subsequent inspections cannot reliably reconstruct what actually happened at every fastening point.

An additional inspection layer may reduce risk, but it cannot replace real-time verification of tool position, program selection, and tightening results.

Paper Records Cannot Provide Reliable Point-Level Traceability

A paper checklist may show that a module has been “completed” or “approved,” but it is difficult to use it to record the specific program, result, completion time, and exception-handling history of every fastening point.

If an assembly task continues across multiple shifts or a component requires rework, you may struggle to determine:

• Which fastening points have already been completed;
• Which points previously produced NOK results;
• Whether those points achieved an OK result after rework;
• Which product or configuration the current records belong to;
• Where the next operator should resume the task.

When records are completed manually after the operation, information may also be omitted, entered incorrectly, or become disconnected from the actual production process.

Process Control Must Respond When an Error Occurs

Manual inspection usually attempts to find an error after the operation has been completed. The greater value of process control is its ability to identify and respond to the error as it occurs.

For example:

• If the tool has not reached the specified position, the system can prevent it from starting;
• If the operator selects the wrong socket, the system can issue a warning;
• If the tightening tool returns an NOK result, the system can pause subsequent steps;
• Only after all required fastening points have received an OK result can the assembly proceed to the next production stage.

Building a controlled fastening workstation does not mean eliminating work instructions or manual inspection. Instead, it adds real-time verification to the existing quality process.

Work instructions explain the correct procedure, while inspectors handle abnormalities that require professional judgment. Position detection, program interlocking, and result recording then verify whether each fastening operation has actually been completed according to the defined requirements.

How Does a Controlled Fastening Workstation Work?

A controlled fastening workstation is not created simply by placing a controller beside the tightening tool. You first need to convert the requirements for product identification, fastening positions, tightening programs, operating sequences, and result handling into system rules. The workstation then uses these rules to verify every operation performed during production.

The operator still moves the tool, aligns it with the fastener, and performs the tightening operation. Meanwhile, the system verifies:

• Which product is currently being assembled;
• Which program, socket, or bit should be used;
• Whether the tool has reached the correct fastening position;
• Whether the required sequence is being followed;
• Whether the tightening result is OK or NOK;
• Whether an NOK result has been handled according to the defined procedure.

The complete workflow can be divided into four stages: workstation configuration, pre-tightening confirmation, in-process verification, and post-tightening result handling.

Configure the Workstation Before Production

A position-control system does not automatically know where every fastener is located. Before the workstation enters production, an engineer must establish the relationship between each product and its corresponding fastening task.

During commissioning, the engineer moves the tool to each fastening position that needs to be controlled. Sensors installed on the torque reaction arm output information such as joint angles, extension distances, or coordinates. The controller then stores the position data for each fastening point and defines an acceptable tolerance range.

Each fastening point must also be assigned:

• The corresponding tightening program;
• The permitted socket or bit;
• Its position in the operating sequence;
• The action to be taken after an OK result;
• The alarm or rework rule that applies after an NOK result.

For workstations requiring more complete process management, the KURAN KR002-H01 Supervisory Tightening Controller can import an image of the product or component and display the fastening points directly on that image. It can also store the position coordinates, acceptable tolerances, and corresponding tool program for each point. In this way, the system records not merely a series of position numbers, but a complete fastening task that can be recalled whenever the same product enters production.

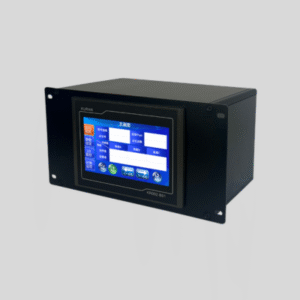

If your workstation mainly requires basic position, sequence, and program interlocking, the KR002-B01 Workstation Tightening Controller can connect the torque reaction arm, tightening tool, and other devices through sensor signals and I/O interfaces.

Only after these parameters have been configured does the system have the information it needs to determine whether the tool is at the correct position and what operation should be performed next.

Before Tightening: Identify the Task and Prepare the Correct Program

When production begins, the workstation must first identify the product or component currently being assembled.

In applications that require product traceability, the operator can scan a barcode or serial number. The system then recalls the predefined fastening task, including the number of fastening points, operating sequence, program numbers, and result-evaluation rules.

If programs are selected manually, the operator should be given a clear and verifiable method of making the correct selection.

For example, the KURAN KR004-CX Program Selector uses a rotary selection mechanism. The operator turns the selector to the number corresponding to the current task, and the device outputs an encoded signal for that position, allowing the tightening tool to switch to the required program. The selector does not identify the product automatically. Instead, it converts a program that would otherwise need to be found through the tool interface into a more direct numbered selection.

If multiple sockets are used at the same workstation, selecting the correct program is still not enough. The system must also verify which accessory the operator has actually removed.

The KURAN KR004 Smart Socket Selector illuminates the slot containing the socket required for the current step. When the socket is removed, the selector outputs the corresponding coded signal. This signal can be linked to the tightening tool or controller so that the program matching that socket is called automatically. When the socket is returned, the system can also use the slot status to confirm that the accessory has been placed back correctly.

For workstations using multiple bits, the KR004-SJ Locking Bit Selector manages bit access through a locking and release mechanism. Based on the current assembly step, the system releases only the permitted bit and uses the slot signal to confirm which one the operator has selected. This reduces the risk of continuing the operation with the wrong bit.

After these checks, the workstation establishes a complete relationship:

Current product → Current assembly step → Correct program → Correct accessory

The actual tightening operation begins only after all conditions required for the current step have been satisfied.

During Tightening: Verify Position and Sequence

Using the correct program and accessory does not prove that the tool is operating on the correct fastener. If two fastening points look similar or are located close together, the operator may still apply the correct program at the wrong position and obtain an apparently acceptable result.

The tool position must therefore continue to be verified during tightening.

The tightening tool is mounted at the end of the torque reaction arm through a suitable adapter. The operator pushes or pulls the arm to guide the tool toward the target fastener. The arm’s balancing structure supports the tool and its moving components, allowing the operator to focus more attention on tool guidance and alignment.

When the tool starts, the resulting reaction torque is transferred through the arm structure to the mounting base instead of being absorbed primarily by the operator’s wrist and arm. At this stage, the reaction arm is addressing tool support, operating stability, and reaction torque control.

If the arm is equipped with position sensors, it can also continuously send its current joint angles or extension position to the controller. The controller uses these signals to calculate the tool’s real-time position and compares it with the fastening-point data and tolerance ranges saved during commissioning.

When the tool enters the correct position area, the system can enable tool operation and call the tightening program assigned to that point. If the tool is at the wrong position, the interface can prompt the operator and temporarily prevent the tool from starting.

After the current fastening point receives an OK result, the controller marks it as complete and then indicates or enables the next required position. The system therefore verifies more than the number of times the tool has operated. It also determines:

• At which fastening point each operation occurred;
• Whether the correct program was used at that point;
• Whether the fastening point has already been completed;
• Whether the required operating sequence was followed;
• Whether any point was missed or tightened more than once.

A standard torque reaction arm primarily provides tool support and reaction torque control. Only when position sensors, a controller, and tightening-tool signal connections are added can the arm also contribute to fastening-point identification, sequence control, and program interlocking.

After Tightening: Process and Record the Result

After each tightening operation, the tightening tool sends the torque, angle, and OK or NOK status to the controller. Some tools can also provide the complete tightening curve.

If the result is OK, the controller marks the current fastening point as complete and allows the operator to proceed to the next position. If the result is NOK, the system responds according to the predefined rules. It may keep the current point marked as incomplete, prevent subsequent operations, require another controlled tightening attempt, or transfer the task to a rework process.

To make the workstation status easier to recognize, the controller can also be connected to a KURAN KR004-3SD Three-Color Tower Light. When the controller outputs running, OK, or alarm signals, the tower light communicates the current status to the operator through different colors.

The tower light makes the result immediately visible, but it does not decide whether the process can continue. Position lockout, program switching, and exception-handling logic are still executed by the controller.

For applications requiring assembly records, the KR002-H01 can associate the product number with the fastening position, program, torque, angle, tightening curve, OK/NOK status, and completion time.

As a result, during a shift handover, quality inspection, or subsequent rework, you can see not only whether a module has been completed but also the actual result recorded for every controlled fastening point.

A complete controlled fastening workflow can therefore be summarized as:

Identify the product → Call the task → Guide program and accessory selection → Verify the tool position → Perform tightening → Receive the OK/NOK result → Handle exceptions → Save the record

Within this workflow, the torque reaction arm provides tool support, reaction torque control, and position-data collection. The selectors help prevent program or accessory selection errors. The controller compares positions, executes process rules, and handles results, while the three-color tower light provides clear workstation status feedback.

These devices are not added to the workstation as independent components. They are connected through signals to form a continuous verification chain. The level of control you need should depend on the specific assembly risks at your workstation and whether traceable records must be retained for each fastening point.

What Level of Process Control Does Your Workstation Need?

Not every fastening workstation requires a complete process control system. If your workstation has only a few fastening points, uses a single program, and allows errors to be identified reliably during subsequent inspection, an overly complex control system may simply increase commissioning and maintenance costs.

A more practical approach is to assess the main risks at your workstation first and then determine the appropriate level of control. In semiconductor equipment assembly, common configurations can generally be divided into three levels: basic tool support, position and sequence error-proofing, and complete process control.

Level 1: Basic Tool Support and Reaction Torque Control

This level primarily addresses tool weight, reaction torque, and operating stability. Strictly speaking, it provides the mechanical foundation for a controlled fastening workstation but does not yet create a complete process error-proofing system.

It is more suitable when:

• The product and fastening process remain relatively consistent;
• There are only a few fastening points, and they are easy to distinguish;
• Most fastening points use the same program;
• The risk of missed tightening or an incorrect sequence is relatively low;
• Your main concerns are heavy tools, significant reaction torque, or operator fatigue during prolonged use.

In this configuration, the tightening tool is mounted at the end of a torque reaction arm. The operator moves and aligns the tool, while the arm supports its weight and transfers the reaction torque generated during tightening to the mounting base.

KURAN can configure a suitable torque reaction arm and tool adapter based on the tool weight, maximum torque, operating direction, and required working range. This configuration can improve tool handling and ergonomics, but it cannot automatically determine which fastening point the operator is working on. It also cannot independently prevent missed tightening, repeated tightening, or sequence errors.

If the main risk at your workstation has shifted from “Can the operator handle the tool steadily?” to “Is the operation being completed at the correct position?”, you need to move to the next level.

Level 2: Position and Sequence Error-Proofing

This level is suitable for workstations with numerous fastening points, similar-looking positions, or operations that must follow a specified tightening sequence.

Typical risks include:

• Adjacent fastening points being confused;
• A fastener being missed;
• The same position being tightened more than once;
• The operator skipping the required sequence;
• The correct program being applied to the wrong fastening position.

This configuration typically consists of a torque reaction arm equipped with position detection, a workstation controller, and a tightening tool capable of returning OK/NOK results.

During commissioning, an engineer moves the tool to each fastening point that needs to be controlled and enters the corresponding position data, acceptable tolerance, operating sequence, and program number into the system. During production, sensors on the reaction arm continuously send the current tool position to the controller.

For example, the KURAN KR002-B01 Workstation Tightening Controller can read position-sensor signals from the arm and compare the real-time tool position with the predefined fastening points. The controller enables the corresponding program only after the tool enters the correct area. If the tool is at the wrong position, the system can keep it locked or prompt the operator to move it. Once the current point receives an OK result, the system enables the next required position.

This creates a basic closed-loop process for each fastening point:

Reach the correct position → Run the corresponding program → Receive an OK result → Enable the next fastening point

This level can significantly reduce the risks of missed tightening, repeated tightening, and incorrect sequences. However, position and sequence control alone may not be enough if your workstation handles multiple products, programs, or accessories, or if you need complete point-level traceability.

Level 3: Complete Process Control and Traceability

This level is designed for workstations involving multiple product variants, tightening programs, and accessories, or applications that require point-level fastening records. In semiconductor equipment assembly, more comprehensive process control is often required when one workstation handles different modules, assembly tasks extend across multiple shifts, or tightening results must be retained for quality audits.

In addition to verifying position and sequence, the system must manage:

• The product or component currently being assembled;
• The corresponding fastening task and tightening programs;
• Socket or bit selection;
• The OK/NOK result for each fastening point;
• Rework and authorization procedures following an exception;
• Torque, angle, tightening curves, and completion time;
• Signal exchange with peripheral equipment and production systems.

In this configuration, the operator can begin by scanning a product barcode or serial number. The KURAN KR002-H01 Supervisory Tightening Controller then recalls the corresponding task and displays the fastening points that need to be completed.

When different sockets are required, the KR004 Smart Socket Selector can illuminate the slot containing the socket needed for the current step. After the operator removes it, the selector sends the slot code to the control system and can trigger the corresponding tightening program. For workstations that need to control bit selection, the KR004-SJ Locking Bit Selector can release only the bit permitted for the current assembly step.

The operator then moves the tool to the target position. The control system allows the tool to run only after confirming that the position, program, and accessory all meet the process requirements. Once tightening is complete, the tool returns the torque, angle, and OK/NOK result. Based on that result, the system either enables the next fastening point or holds the current task, triggers an alarm, and initiates the defined rework procedure.

The KR004-3SD Three-Color Tower Light can simultaneously indicate running, OK, and alarm conditions, making abnormal conditions easier for production personnel to recognize.

Meanwhile, the system stores the product number, fastening position, program, and result as a linked record. Even if the assembly task continues across multiple shifts or requires rework, you can still confirm which points have been completed, which positions produced an NOK result, and whether each exception was handled according to the required procedure.

This level creates a more complete verification chain:

Identify the product → Recall the task → Confirm the program and accessory → Verify position and sequence → Receive the result → Handle exceptions → Save the record

Choose the Control Level Based on Risk

These three levels are not fixed product packages, nor does every workstation need to be upgraded to the highest level at once. Your decision should depend on how likely an error is to occur, the consequences it could cause, and whether subsequent inspections can reliably detect it.

If your current problems mainly involve tool weight and reaction torque, basic tool support may be sufficient. If missed tightening, repeated tightening, or sequence errors occur frequently, you should add position detection and sequence control. If your workstation handles numerous product variants, programs, and accessories and requires traceability for every fastening point, a complete process control system is more appropriate.

A practical upgrade principle is therefore:

Control the most clearly identified risks first, and then add further capabilities as product complexity and traceability requirements increase.

This approach helps you avoid adding unnecessary functions to a simple workstation while also preventing high-risk assembly processes from relying solely on tool accuracy, work instructions, or manual inspection.

What Information Should You Prepare Before Selecting a Solution?

A controlled fastening workstation is not a standard piece of equipment that can be selected without considering the actual production environment. Even if two workstations use the same tightening tool, differences in fastening-point layout, operating sequence, installation space, or traceability requirements may result in completely different reaction-arm structures and control configurations.

Before selecting a solution, you should explain how the tool will be used, what actions the operator must perform, and which errors the system needs to prevent. The following information will directly affect the workstation design.

Tightening Tool and Torque Information

First, provide the brand, model, and technical documentation of the tightening tool. The tool model helps the solution provider confirm its dimensions, output-shaft orientation, mounting position, and the type of tool adapter required.

You should also provide:

• The torque range used during normal production;
• The maximum output torque of the tool;
• The weight of the tool itself;
• The weight of sockets, extension bars, and other accessories;
• The connection direction of cables, air hoses, or signal lines;
• The required tool orientation and operating posture.

Do not provide only the process torque setting. The normal operating torque determines the reaction force the arm must handle during regular production, while the tool’s maximum output torque helps evaluate abnormal operating conditions and the required safety margin.

The load calculation should not be limited to the tool itself. Sockets, extension bars, scanning devices, and cables that move with the tool can all affect the total end load and handling characteristics. Only when the complete moving weight is known can the balancing force be configured correctly, preventing the tool from dropping under its own weight or becoming difficult to align because of excessive upward force.

Fastening-Point Layout and Operating Direction

The required working range of the reaction arm cannot be determined from the approximate size of the workpiece alone. You also need to show how the fastening points are distributed relative to the proposed arm mounting position.

Useful information includes:

• A dimensional drawing of the workpiece or assembly module;
• The number and location of fastening points;
• The fastening points nearest to and farthest from the proposed mounting position;
• The highest and lowest points and the height differences between working planes;
• The direction from which the tool must approach each fastener;
• Whether tightening is performed horizontally, vertically, or at an angle;
• Any workpieces, guardrails, columns, or other equipment that may obstruct arm movement.

For example, two fasteners may be the same straight-line distance from the mounting base. However, if one is located inside the equipment and the tool must move around a frame to reach it, you must verify whether the arm joints can complete that movement. Comparing the nominal working radius alone would not be sufficient.

If the workstation requires position detection, you should also provide the approximate distance between adjacent fastening points. The closer the points are to one another, the more accurately the system must distinguish their positions. The permitted position tolerance must therefore be defined according to the tool dimensions and the actual operating space.

Site photographs can help explain the general layout, but they should ideally be accompanied by a dimensioned plan, side view, or simple sketch. This information helps determine whether the arm should be mounted on the workbench, at the side, on the floor, or on an overhead structure. It also helps identify potential collisions throughout the arm’s range of movement.

Product Variants, Programs, and Accessories

If one workstation handles only a single product and all fastening points use the same parameters, the required control logic is usually relatively simple. If multiple products share the workstation, however, you need to define the fastening task associated with each product variant.

You can organize the following information:

• The number of products or modules handled at the workstation;
• The number of fastening points on each product;
• The tightening program assigned to each point;
• Whether the points must be completed in a specified sequence;
• How the workstation changes from one product to another;
• Whether different sockets, bits, or extension bars are required;
• How operators currently identify products and select accessories.

This information helps determine whether your system needs only position and sequence control or whether it must also include product identification, automatic program switching, and accessory-selection error-proofing.

For example, if different fasteners require different sockets and tightening programs, verifying the tool position alone cannot prevent accessory-selection errors. The control system must also establish the correct relationship between the product, fastening point, program, and accessory—and confirm which accessory the operator has actually selected.

Errors That the System Needs to Prevent

Before selecting equipment, you should clearly identify the problems the workstation needs to solve. Different types of errors require different control methods.

Common risks include:

• A heavy tool causing operator fatigue;
• Reaction torque reducing operating stability;
• Fastening points being missed or tightened more than once;
• Fasteners not being completed in the required sequence;
• Similar-looking fastening points being confused;
• The operator selecting the wrong tightening program;
• The wrong socket or bit being selected;
• Production continuing after an NOK result;
• The actual result for each fastening point being unavailable after assembly.

If your main concerns are tool weight and reaction torque, a basic torque reaction arm may be sufficient. If missed tightening, repeated tightening, and sequence errors are the primary problems, you will also need position detection and workstation control. If the workstation handles multiple products, programs, and accessories, the system must further control task selection and accessory use.

Instead of simply telling the solution provider that you need a “smart fastening system,” explain which errors have occurred, at what stage they usually occur, and under which conditions you want the system to stop the tool or prevent the process from continuing.

Tool Communication and Traceability Requirements

A controlled fastening workstation must receive operating status and OK/NOK results from the tightening tool. It may also need to send tool-enable or program-selection signals. You should therefore confirm in advance which interfaces, signals, and data the tool can provide.

Recommended information includes:

• The brand and model of the tightening tool and its controller;
• Available I/O or communication interfaces;
• Whether the tool can receive external program-selection signals;
• Whether it can return OK/NOK, torque, and angle results;
• Whether it can output the complete tightening curve;
• Whether the workstation must connect to a barcode scanner, PLC, MES, or other peripheral equipment.

You should also define which data needs to be retained. Some workstations only need to confirm that every fastening point has received an OK result. Others must link the product serial number with the fastening position, program, torque, angle, tightening curve, completion time, and exception-handling result.

Keep in mind that the workstation can record only the data the tightening tool is able to provide. Confirming interfaces and available signals before the system is designed helps prevent you from discovering, after installation, that the existing tool cannot support the required functions.

Workstation and Production Conditions

Finally, you need to consider the conditions under which the equipment will be installed and operated over the long term, including:

• Available space on and around the workbench;
• Whether drilling into the workbench or floor is permitted;
• Whether side, overhead, or floor mounting is possible;
• Where the operator normally stands;
• Whether the operator works primarily with the left or right hand;
• Production volume per shift and fastening frequency;
• Whether the workstation is used across multiple shifts;
• How frequently product changeovers occur;
• Available power, compressed air, and cable-routing conditions;
• Any special cleanliness, antistatic, or equipment-material requirements.

These conditions affect not only the mounting method but also the arm’s movement structure, cable management, operating convenience, and future maintenance requirements.

A Practical Information Checklist

If you cannot prepare complete technical documentation at the beginning, you should at least provide:

• The tightening-tool model, normal operating torque, and maximum output torque;
• The total tool weight, including sockets and other accessories;
• Workstation photographs and a simple dimensioned layout drawing;
• The number and distribution of fastening points, operating directions, and required sequence;
• The types of errors the system needs to prevent;
• The number of products, programs, and accessories involved;
• The interfaces and result data available from the tightening tool;
• Whether barcode scanning, exception handling, and point-level traceability are required.

Based on this information, KURAN can evaluate the required load capacity, working range, movement structure, and mounting method of the torque reaction arm. It can also determine whether the workstation requires position detection, a controller, program or accessory selectors, and result-recording capabilities.

The purpose of preparing this information is not to make you design the entire solution in advance. It is to ensure that the final configuration is based on actual workstation conditions. The more specific the information is, the easier it becomes to avoid insufficient working range, improper tool balancing, difficulty distinguishing adjacent fastening points, or incompatibility between the control system and your existing tightening tool.

Conclusion

Fastening quality in semiconductor equipment assembly cannot depend solely on the torque accuracy of the tightening tool. Even when the specified torque is applied correctly, errors can still occur if the operator misses a fastening point, selects the wrong program or accessory, follows an incorrect sequence, or bypasses an NOK result.

A controlled fastening workstation connects product identification, program and accessory selection, tool position, operating sequence, and tightening results into a continuous verification process. It confirms not only that tightening has been completed, but also that it was performed at the correct position and under the correct conditions.

You do not need to introduce every control function at once. Tool support, position detection, sequence control, accessory management, and result traceability can be added gradually according to the actual risks and complexity of your workstation.

How Can KURAN Help You Configure the Right Workstation?

KURAN can configure the appropriate torque reaction arm, position-detection system, workstation controller, and program or accessory selector based on your assembly requirements. The objective is to ensure that each control function addresses a clearly identified risk rather than adding unnecessary complexity to the workstation.

To request a solution assessment, you can provide:

• The tightening-tool model, weight, and maximum torque;
• The workstation layout and fastening-point positions;
• The required operating direction and tightening sequence;
• The number of product variants, programs, sockets, and bits;
• The assembly errors you need to prevent;
• The tightening results and traceability data you need to retain.

Based on this information, KURAN can evaluate the appropriate reaction-arm structure, control level, and system connections for a more stable, verifiable, and scalable fastening process.

Frequently Asked Questions About Controlled Fastening Workstations

Is an Accurate Tightening Tool Enough to Prevent Assembly Errors?

A high-accuracy tightening tool can control torque and angle, but it usually determines only whether the current tightening operation has reached the specified parameters. It cannot independently confirm whether the tool is being used on the correct fastener, whether other fastening points have been missed, or whether the operator has selected the wrong socket or program.

If your workstation faces risks such as missed tightening, repeated tightening, incorrect sequences, or program-selection errors, improving tool accuracy alone will not provide complete process control. Position detection, program management, and result interlocking are also required to link each OK result to the correct product and fastening point.

Can a Torque Reaction Arm Prevent Missed or Repeated Tightening?

A standard torque reaction arm mainly supports the tool’s weight and absorbs reaction torque. By itself, it cannot identify which fastener the operator is tightening and therefore cannot independently prevent missed or repeated tightening.

When the arm is equipped with position sensors and connected to a KURAN KR002-B01 or KR002-H01 control system, the sensors can send joint-angle or extension-position data to the controller. Based on the predefined fastening-point data and completion status, the controller can determine whether the tool has reached the correct position and whether that point has already received an OK result.

Point-level error-proofing therefore requires a complete combination:

Position-detection torque reaction arm + Fastening-point data + Controller + Tightening-tool result signals

How Does the System Distinguish Between Closely Spaced Fastening Points?

During workstation commissioning, an engineer moves the tool to each fastening point and saves the corresponding position data and acceptable tolerance range. During production, the controller compares the arm’s real-time position with these predefined values to determine which fastening-point area the tool has entered.

When two fastening points are close together, reliable identification cannot be achieved simply by reducing the software tolerance. You must also consider the sensor accuracy, mechanical structure of the arm, tool length, socket orientation, and repeatable positioning deviation during actual operation.

You should therefore provide the distance between adjacent fastening points, the required tool approach direction, and a dimensioned workstation drawing before the solution is evaluated. Based on this information, KURAN can determine whether the proposed structure can reliably distinguish the positions or whether the arm mounting position, sensor configuration, or point-detection method must be adjusted.

Can the System Work With an Existing Tightening Tool?

Compatibility depends on the interfaces and signals available from the existing tightening-tool controller.

For basic fastening-point control, the system normally needs to receive at least the tool-running and OK/NOK signals. If you also need automatic program switching or tool-start interlocking, the tool must support external program-selection signals, enable signals, or a suitable communication interface.

Before configuring a KURAN KR002-B01 or KR002-H01 controller, you should confirm the brand and model of the tightening tool and its controller, together with the available I/O interfaces and communication protocols. You should also determine whether the tool can output torque, angle, and tightening-curve data, because the control system can record only the data that the tool is able to provide.

Can One Workstation Handle Multiple Product Variants?

Yes. However, the system must first establish the relationship between each product variant and its corresponding fastening task, including the number and location of fastening points, the required sequence, tightening programs, and accessories.

At the beginning of production, the operator can scan a barcode or serial number to recall the correct task. Manual task selection can also be used when appropriate for the workstation configuration. After the task has been loaded, the system enables only the fastening points and programs required for the current product, preventing the parameters for one product from being applied to another.

If different products require different sockets or bits, the workstation can also include a KURAN KR004 Smart Socket Selector or KR004-SJ Locking Bit Selector to guide and verify accessory selection.

Product changeover therefore involves more than switching a single tightening program. The product, fastening points, sequence, programs, and accessory rules must all be changed together.

What Happens When a Tightening Result Is NOK?

When the tightening tool returns an NOK result, the controller does not mark the current fastening point as complete. Depending on the predefined rules, the system can hold the current task, prevent access to the next fastening point, trigger an alarm, or require the product to enter a rework process.

The KURAN KR004-3SD Three-Color Tower Light can receive status signals from the controller and use different colors to inform the operator that an abnormal condition has occurred. However, the tower light only displays the status. Whether the operator may repeat the tightening operation, skip the point, or continue production is still determined by the process rules configured in the controller.

For workstations requiring stricter quality control, you should also define:

• Whether the operator may repeat the tightening operation directly;
• Whether authorization from a supervisor or quality inspector is required;
• Whether the original NOK result must be retained after rework;
• Whether all affected fastening points must be verified again before the product is released.

The KR002-H01 can link the abnormal result and subsequent handling process to the corresponding product and fastening point. This allows the system to retain not only the final acceptance status but also a record of the exceptions that occurred during assembly.
