Industrial Tightening Tool Accessories for Assembly Workstations
KURAN provides industrial tightening tool accessories designed to improve operator control, mechanical connection, and tool integration in assembly workstations. Compare the KR003 industrial handle and KR005 tool adapters based on tool interface, operating requirements, mounting configuration, and compatibility with your torque reaction arm.
KURAN Accessories for Tightening Tool Integration
The KR003 industrial handle gives operators convenient forward and reverse control of the tightening tool, while KR005 tool adapters provide the mechanical interface between a tightening tool and torque reaction arm. Review the two accessory types below based on tool compatibility, mounting method, and workstation operating requirements.

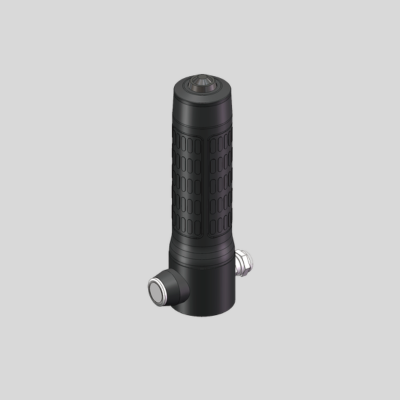

KR003 industrial handles help operators precisely control equipment start, stop, and forward/reverse operation. Available configurations feature a comfortable grip, reserved mounting holes, and support for vertical, horizontal, or multi-angle adjustment, with different button, switch, and indicator arrangements available by model.
KR005 tool adapters connect tightening tools to KURAN torque reaction arms. Standard clamp-style models are available for selected 25 Nm, 50 Nm, and 100 Nm arm configurations with clamping diameters from 22 to 55 mm, while other adapters can be customized to match the customer’s tool dimensions.
Compare KR003 Industrial Handles and KR005 Tool Adapters
KR003 and KR005 perform different functions and may be used together within the same tightening workstation. KR003 provides the operator interface for equipment control and flexible handle mounting, while KR005 provides standard or customized mechanical adapters for connecting tightening tools to compatible torque reaction arms.
| Product | Primary Function | Manual-Based Features | Confirm Before Selection |
|---|---|---|---|
| KR003 Industrial Handles | Help operators control equipment start, stop, and forward/reverse operation. | Comfortable grip, reserved mounting holes, vertical or horizontal installation, multi-angle adjustment, and model-specific button, switch, and indicator arrangements. | Required control functions, mounting orientation, and button, switch, or indicator configuration. |
| KR005 Tool Adapters | Connect tightening tools to compatible KURAN torque reaction arms. | Standard clamp-style models for selected 25 Nm, 50 Nm, and 100 Nm arm configurations, clamping diameters from 22 to 55 mm, and size-matched custom options. | Torque arm series, tightening tool model and dimensions, clamping diameter, and whether customization is required. |
KR003 and KR005 can be used together when a workstation requires both operator control and a compatible mechanical connection between the tightening tool and torque reaction arm.
What Information Is Needed to Select a Tightening Tool Accessory?
Selecting the right accessory depends on both the operator control requirements and the mechanical interface between the tightening tool and torque reaction arm. Providing the information below helps KURAN identify a suitable KR003 handle configuration, a standard KR005 adapter, or a size-matched custom adapter.
Information for Industrial Handles
- Required control actions: start/stop, forward/reverse, and any additional operator controls.
- Preferred mounting: vertical, horizontal, or multi-angle adjustment.
- Interface configuration: single button, multiple buttons, lever switch, and LED indicator requirements.
- Electrical requirements: NPN/PNP compatibility, cable length, and cable routing.
Information for Tool Adapters
- Torque arm information: KURAN series, model, and workstation configuration.
- Tightening tool information: manufacturer, model, and relevant tool dimensions.
- Connection dimensions: required clamping diameter and mounting-interface measurements.
- Adapter requirement: standard clamp-style adapter or a size-matched custom configuration.
For a custom KR005 adapter, provide the tightening tool model together with clear interface measurements or a dimensioned drawing.
Frequently Asked Questions About Tightening Tool Accessories
What is the difference between a KR003 industrial handle and a KR005 tool adapter?
KR003 is an operator-control accessory that supports equipment start/stop and forward/reverse operation. KR005 is a mechanical accessory used to connect a tightening tool to a compatible KURAN torque reaction arm. A workstation may require both products because they perform different functions.
Can KR003 industrial handles be mounted vertically or horizontally?
Yes. The KR003 range includes configurations that support vertical installation, horizontal installation, and multi-angle adjustment. The appropriate model and mounting arrangement should be selected according to the workstation layout and operator access requirements.
Which control options are available for KR003 industrial handles?
Options vary by model and include single-button operation, forward/reverse switches, multi-button arrangements, lever switches, and LED indicators. Confirm the required control actions, indicator functions, electrical compatibility, and mounting direction before selecting a handle.
What clamping diameters are available for KR005 tool adapters?
The standard clamp-style KR005 models listed in the KURAN manual cover clamping diameters from 22 to 55 mm. The exact diameter range depends on the adapter model and compatible torque arm series, so the tightening tool dimensions should be checked before selection.
Can KURAN customize a KR005 adapter for a specific tightening tool?
Yes. In addition to standard adapters, KURAN can provide size-matched configurations based on the customer's tightening tool. Supply the tool model and clear mounting-interface dimensions or a dimensioned drawing so the required connection can be evaluated.
