COMPACT SUPPORT FOR SPACE-CONSTRAINED WORKSTATIONS

KR008 Side-Mounted Carbon Fiber Torque Reaction Arm

Designed for workstations with limited installation clearance, the KURAN KR008 combines a compact folding carbon fiber structure with pneumatic tool balancing and adjustable damping. It supports reaction torque up to 100 Nm, with flexible mounting options and optional XY / XYZ position detection to match your workstation layout and process-control needs.

Up to 100 Nm Reaction Torque
Up to 7 kg Effective Payload
700–1200 mm Working Radius
Optional XY / XYZ Position Detection

Working radius and vertical stroke vary by arm-length configuration.

KURAN KR008 side-mounted carbon fiber torque reaction arm
WORKSTATION FIT

Is KR008 Right for Your Workstation?

Consider the KURAN KR008 when installation space is limited and your tightening tool needs compact, folding support. Start with the available mounting position, then check whether the arm can reach every fastening point without interfering with surrounding equipment.

Limited Overhead Clearance

Frames, enclosures or nearby equipment may restrict the space above your workstation. KR008 offers a compact folding structure that can be evaluated for layouts where a taller support arrangement would be difficult to install.

Check available height and the full vertical movement path.

Side-Mounted Installation

If your workstation layout favors a side mounting position, KR008 can provide tool support from that location. Select the mounting side and folding direction around operator access, fixture placement and the required tightening positions.

Confirm mounting strength, location and folding direction.

Multiple Fastening Points in a Compact Area

When several fastening points sit within a restricted work area, the folding arm helps you reposition the tool between them. Match the arm lengths and vertical stroke to your fastening layout, including the nearest and farthest points.

Verify point coverage and clearance around fixtures.

PRODUCT VIDEOS

See KR008 in Action

Explore the KURAN KR008 videos and consider how its installation and movement could fit your tightening workstation. Select a video below to watch.

KR008 VIDEO LIBRARY

KR008 Video 1

Use these videos alongside the dimensions and specifications to assess your workstation requirements.

Mounting Clearance
Check the available space above and beside your workstation.
Tool Movement
Consider folding direction, vertical travel and clearance around fixtures.
Fastening Point Coverage
Confirm that your selected arm configuration can reach every required tightening point.
INSTALLATION & WORKSTATION LAYOUT

Mounting Options and Folding Direction

Match your KURAN KR008 installation to the available mounting structure, working height and fastening layout. Select the folding direction together with the mounting position to maintain clearance throughout the tool’s movement.

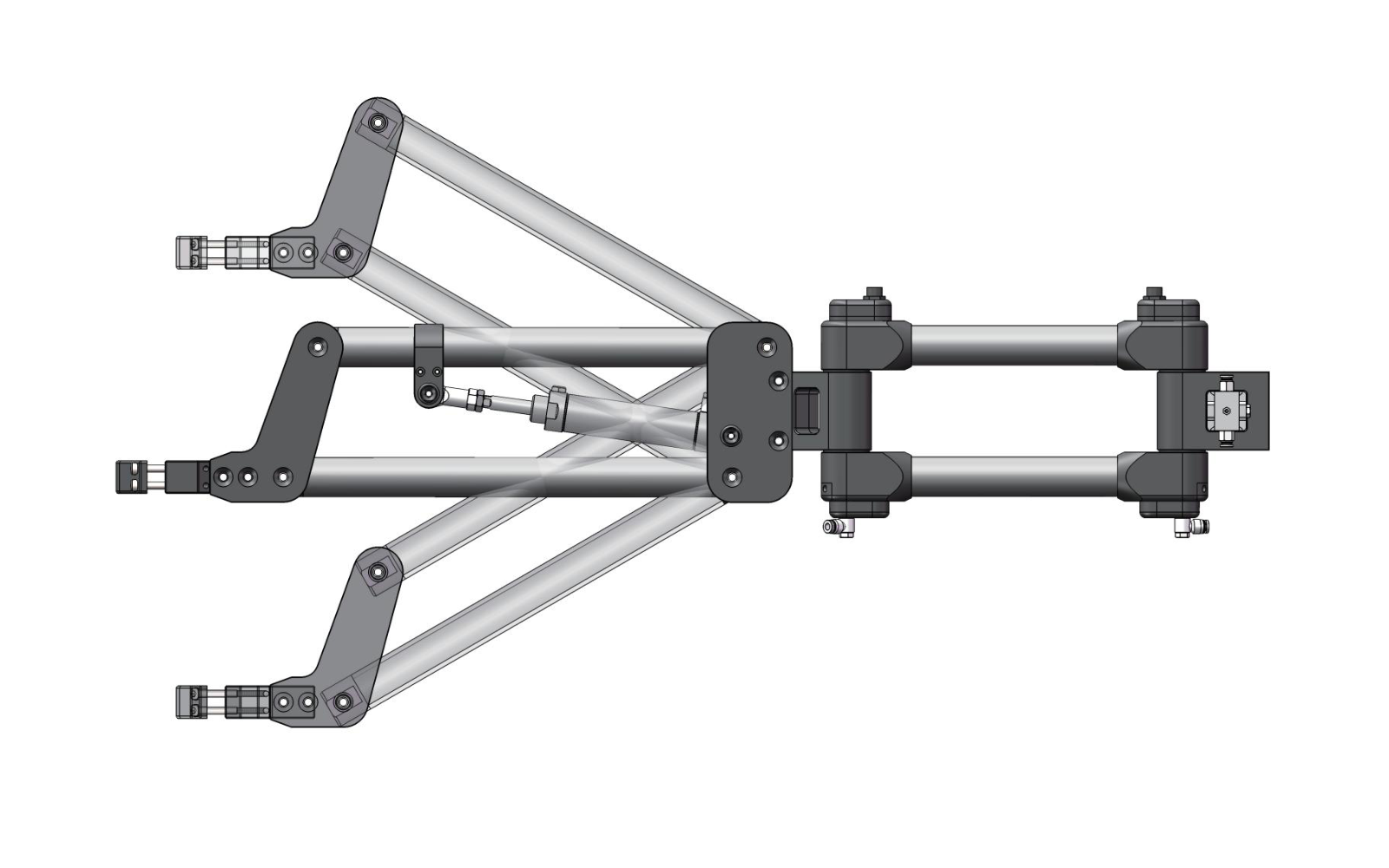

KURAN KR008 side-mounted torque reaction arm structure and vertical movement
S · SIDE-MOUNTED

Side-Mounted Installation

Mount the arm from a suitable side support when the workstation layout favors lateral installation. The folding structure and vertical movement should be checked against the fixture, tool approach and nearby equipment.

Confirm before selection: mounting surface strength, installation height and clearance across the full movement range.

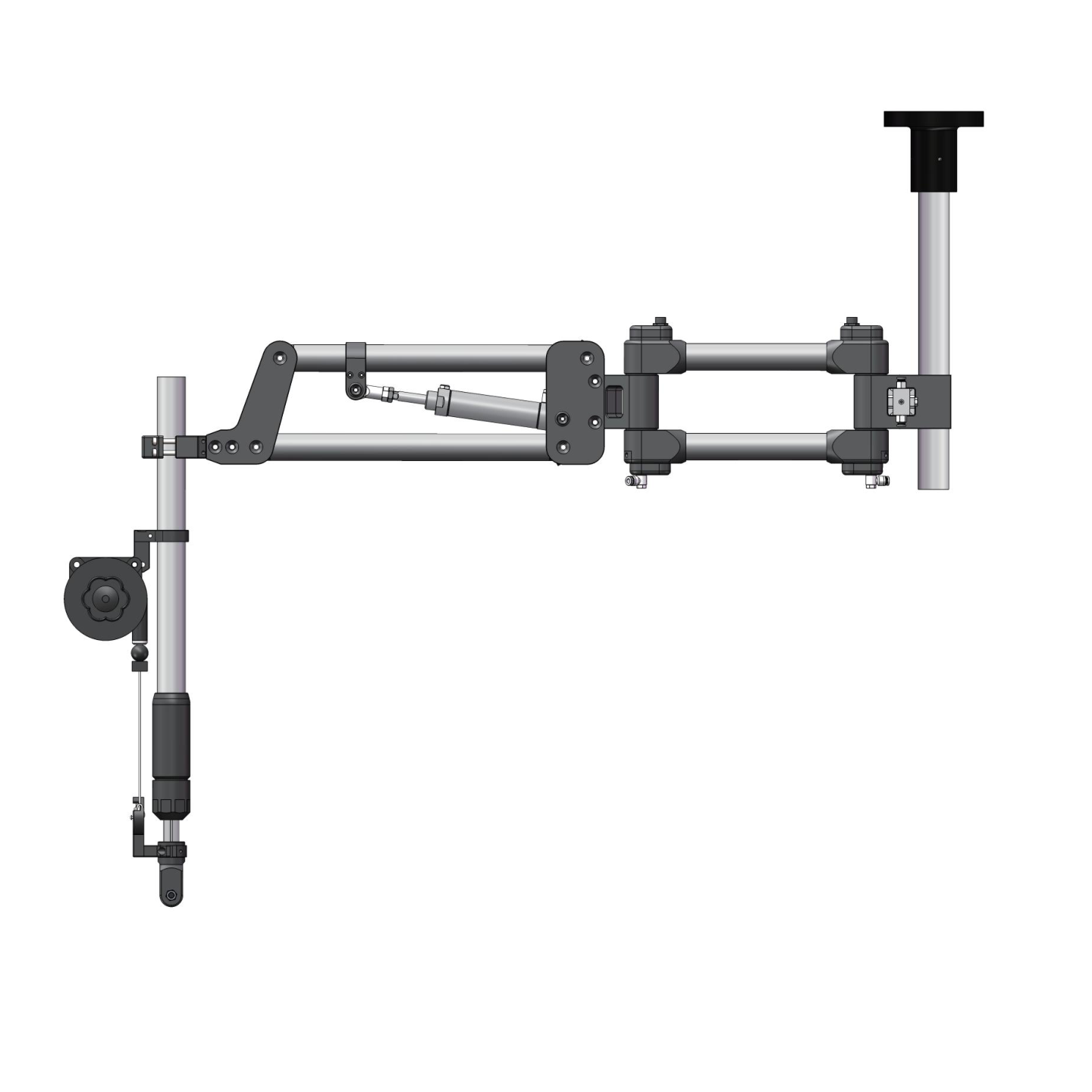

KURAN KR008 top-mounted torque reaction arm layout
T · TOP-MOUNTED

Top-Mounted Installation

A top-mounted configuration can be evaluated when a suitable overhead support is available. Match the mounting height and extension components to the tool’s required working position and vertical travel.

Confirm before selection: overhead support strength, mounting height, extension length and fastening point coverage.

Column / Bench Mounting

KR008 also supports column-based configurations. If you prefer a bench-mounted support, share your workstation dimensions so KURAN can review the column height, mounting components and structural requirements.

LEFT & RIGHT CONFIGURATIONS

Left Fold or Right Fold?

KR008 is available in left-fold and right-fold configurations. Use the KURAN reference diagram to identify the required direction, then check the arm’s movement against your workstation layout.

L Left Fold
R Right Fold

Include the operator position, mounting location and fastening points in your layout drawing. This helps confirm the folding direction and check for interference with fixtures or surrounding equipment.

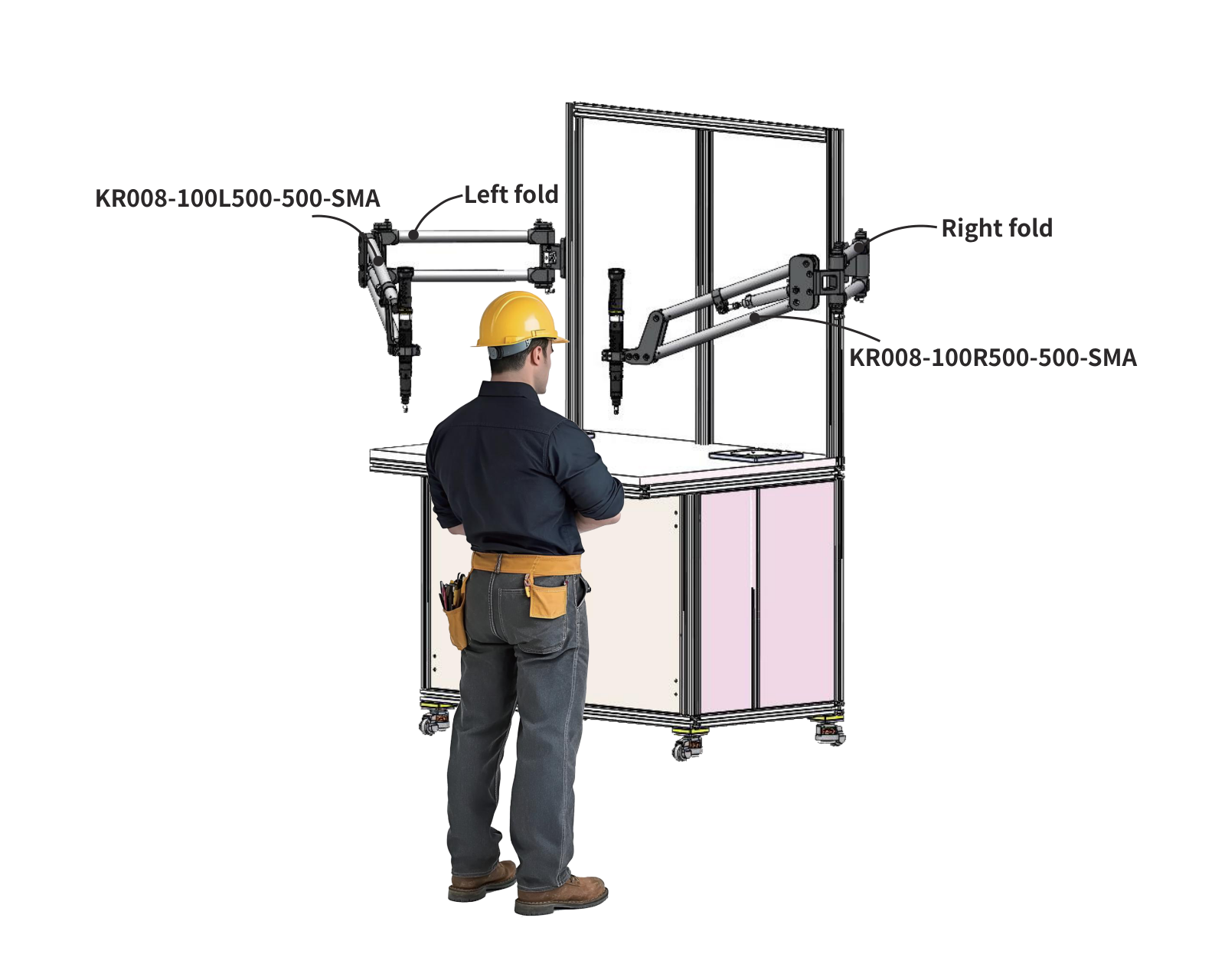

KURAN KR008 left-fold and right-fold configurations shown from the operator’s position View Larger Diagram
MECHANICAL FEATURES

Lightweight Movement and Adjustable Tool Support

The KURAN KR008 combines a carbon fiber arm structure, pneumatic tool balancing and adjustable damping to support repetitive tightening tasks. Each feature addresses a different part of tool handling: moving the arm, supporting the load and managing rotational movement.

Carbon Fiber Structure

The carbon fiber arm combines low structural weight with resistance to reaction torque. For tasks that require frequent repositioning, the lightweight structure helps reduce the effort involved in moving the arm between fastening points.

Easier repositioning during repetitive assembly.

Pneumatic Tool Balancing

A balancing cylinder and precision pressure regulator allow the support force to be adjusted for the tool load. When correctly configured, the system helps reduce the effort needed to raise, lower and guide the tightening tool.

Adjustable weight support for smoother vertical handling.

Adjustable Damping

Adjustable damping lets you tune rotational resistance to suit the operating task. It helps balance smooth movement with stable positioning, reducing unwanted swinging while the operator guides or parks the tool.

Controlled rotation with more stable tool positioning.

CONFIGURATION GUIDE

Choose Your KR008 Configuration

Start with the mechanical layout, then select the position detection and signal options your process requires. KURAN can help match the configuration to your tool, fastening points and available installation space.

Define Your Mechanical Configuration

01 · WORKING COVERAGE

Arm Lengths and Vertical Travel

Select the horizontal and folding arm lengths around the nearest and farthest fastening points. Check the required vertical travel and clearance throughout the movement path.

Compare standard dimensions in the specifications below.

02 · INSTALLATION

Mounting Method

Choose a mounting arrangement that suits your workstation structure and working height. Confirm the mounting components and support rigidity for the selected layout.

S: Side-mounted · H: Column · T: Top-mounted

03 · FOLDING DIRECTION

Left Fold or Right Fold

Use the reference diagram above to identify the required folding direction. Consider the operator position, fixture arrangement and potential interference with nearby equipment.

L: Left fold · R: Right fold

Select Your Position Detection Option

N

No Position Detection

A sensor-free configuration provides mechanical reaction torque support and tool balancing without position feedback from the arm.

Consider this when: Your workstation needs tool support but does not require arm-based fastening position verification.
M

XY Position Detection

An XY configuration provides horizontal position feedback. With a compatible control system, this information can support verification of the intended fastening position.

Consider this when: Fastening points can be distinguished by their horizontal locations and vertical position verification is not required.
MZ

XYZ Position Detection

An XYZ configuration adds vertical position feedback to XY detection. A compatible control system can use this information when fastening location verification also depends on tool height.

Consider this when: Fastening points are at different heights or cannot be reliably distinguished by XY position alone.

Sensor Signal Options

A

0–10 V Analog Output

S

RS485 Digital Communication

Signal options apply to sensor-equipped configurations. Select the interface to match the receiving controller. Position verification, sequence control and tool enable logic require a compatible controller, tool interface and configured workstation program.

TECHNICAL DATA

KR008 Technical Specifications

Compare the standard KR008 arm-length combinations with their corresponding maximum working radius and vertical stroke. Use these dimensions alongside your tool load, mounting position and fastening layout to identify a suitable configuration.

Maximum Reaction Torque 100 Nm
Maximum Effective Payload 7 kg

Standard Arm-Length Combinations

Swipe horizontally to view all columns.

Horizontal Arm Length mm Folding Arm Length mm Maximum Working Radius mm Vertical Stroke mm
200300700180
300300800180
300400900300
4004001000300
4005001100300
5005001200400

Working coverage: Maximum working radius and vertical stroke depend on the selected arm-length combination. Confirm access to both the nearest and farthest fastening points, including fixture clearance.

Tool load: Provide the weight of the tool, adapter, socket and attached accessories so KURAN can confirm the supported load and balancing requirements.

DIMENSIONS & MODEL IDENTIFICATION

Dimensions and Model Code Guide

Review the KR008 working-range diagram and mounting interfaces, then use the model code guide to identify the arm dimensions, folding direction, installation method and sensor configuration.

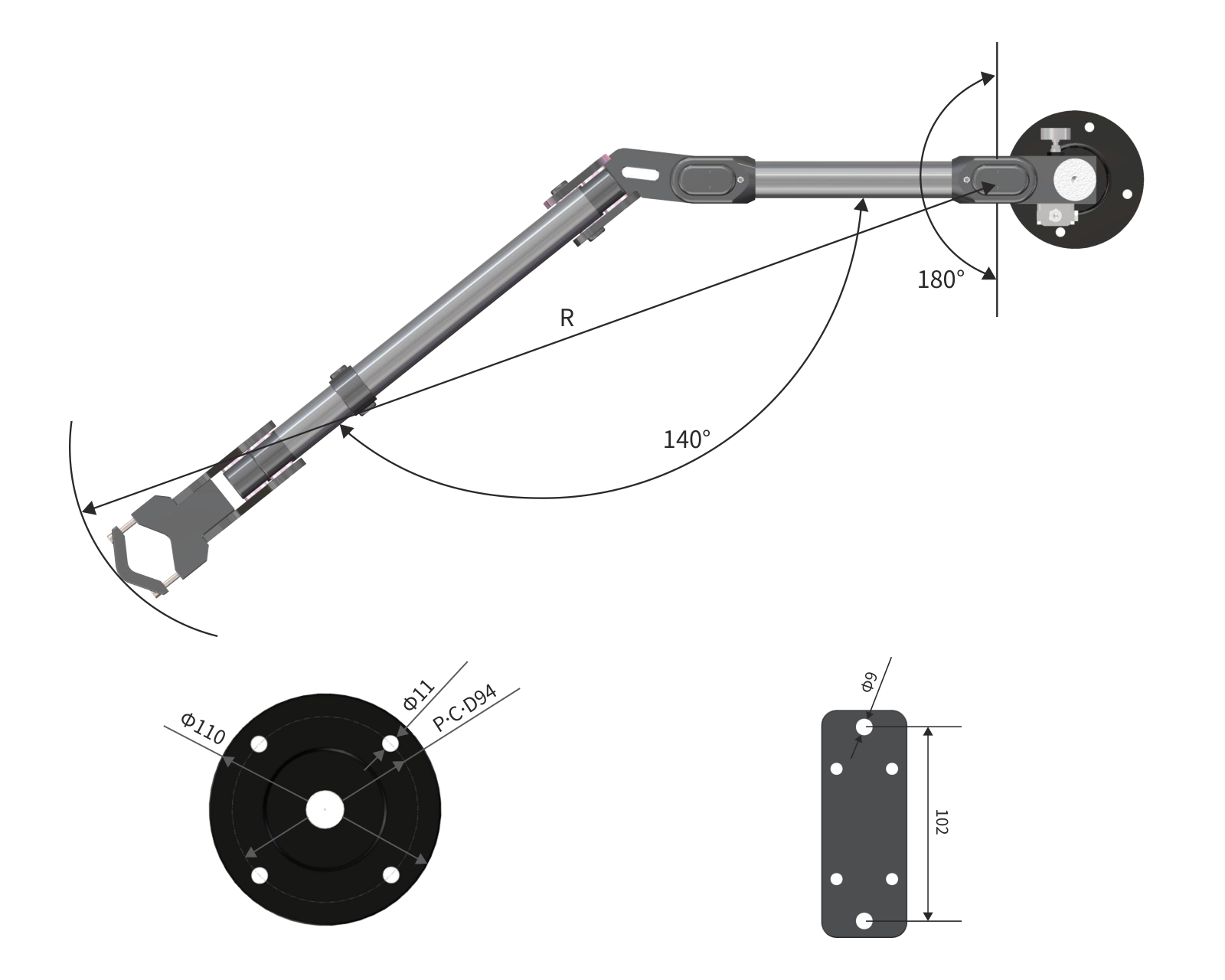

KURAN KR008 torque reaction arm working range and mounting interface dimensions View Larger Drawing

Check Working Coverage and Mounting Fit

Use the reference drawing together with the specification table to evaluate your installation. Confirm the selected arm dimensions and mounting interface against your workstation layout.

Working Radius · R
R identifies the working radius in the diagram. Refer to the selected arm-length combination for its published maximum radius.
Joint Movement
The reference drawing shows 140° and 180° movement annotations. Check the usable movement path against fixtures, guards and nearby equipment.
Mounting Interfaces
Review the flange diameter, bolt-hole pattern and mounting-plate dimensions shown. Confirm which interface applies to your installation.

How to Read a KR008 Model Code

The example below identifies a 100 Nm, left-fold, side-mounted configuration with a 400 mm horizontal arm, a 500 mm folding arm and XY position detection with analog output.

EXAMPLE CONFIGURATION KR008-100L400-500-SMA
KR008
Product Series KR008 side-mounted carbon fiber torque reaction arm.
100
Maximum Torque Maximum reaction torque rating: 100 Nm.
L
Folding Direction L: Left fold.
R: Right fold.
400
Horizontal Arm Horizontal arm length in this example: 400 mm.
500
Folding Arm Folding arm length in this example: 500 mm.
S
Mounting Method S: Side-mounted.
H: Column.
T: Top-mounted.
M
Position Detection N: No sensor.
M: XY detection.
MZ: XYZ detection.
A
Sensor Signal A: 0–10 V analog output.
S: RS485 digital communication.

Code position matters: S in the mounting-method position means side-mounted; S in the sensor-signal position means RS485 communication. The signal suffix applies to sensor-equipped configurations.

TOOL MOUNTING & WORKSTATION INTEGRATION

Tool Compatibility and System Integration

Match your KR008 to the tightening tool and the level of process control your workstation requires. Tool mounting, sensor feedback and optional accessories can be reviewed together to define a suitable KURAN configuration.

Tool Mounting Compatibility

Select a suitable adapter around your tool’s clamping location, dimensions and tightening direction. Compatibility is confirmed for the specific tool model and installation.

  • Provide the tool brand, model and clamping dimensions.
  • Include the weight of the tool, socket, adapter and accessories.
  • Confirm maximum configured torque and required tool orientation.

Position Detection and Controller Integration

Sensor-equipped KR008 configurations can provide XY or XYZ position feedback. A compatible controller and tool interface can use this feedback for position verification and tightening sequence management.

  • KR002-B01: workstation point and program management.
  • KR002-H01: supervisory functions and tightening record integration.
  • Confirm the sensor signal, tool interface and required process logic.

Optional Workstation Accessories

Add socket selection and visual status feedback when your assembly process needs them. Choose accessories around the tool programs, product variants and workstation control logic.

  • KR004 Smart Socket Selector: supports socket selection and program matching.
  • KR004-3SD Tower Light: provides visible workstation status feedback.
  • Confirm wiring and signal compatibility with the control system.

Confirm Your Tool and Control Requirements Share your tool specifications, workstation layout and required process functions. KURAN can review the mounting arrangement and control interfaces; position verification and sequence functions depend on the selected sensors, controller and system setup.

Check My Tool Compatibility

KR008 Frequently Asked Questions

Find answers about KR008 mounting options, folding direction, pneumatic balancing, position detection, and the information needed to select a suitable configuration.

KR008 is designed for workstations with restricted installation space where compact folding tool support is needed. Side-mounted, column-based and top-mounted configurations can be evaluated around your layout. Confirm the mounting position, working coverage, tool load and clearance around fixtures before selection.

Configure KR008 for Your Workstation

Share your maximum tightening torque, tool model and total supported weight, fastening-point layout, and available mounting space. KURAN will help recommend suitable arm dimensions, mounting components, folding direction, and position-detection options. If some details are unknown, send the information you have.
