FLOOR-MOUNTED TORQUE SUPPORT

KR009 Floor-Mounted Torque Reaction Arm

Handle high-torque tightening across large work areas with the KURAN KR009. Its floor-mounted structure combines articulated reach with vertical tool travel to access fastening points at different heights. Choose a configuration with up to 5000 Nm torque capacity and a 5 m working radius, with optional position detection for integration with the KR002 controller.

KURAN KR009 floor-mounted torque reaction arm with articulated arms and a vertical tool support
Torque Capacity
Up to 5000 Nm
Working Radius
Up to 5 m
Effective Load Capacity
Up to 200 kg
Position Detection
Optional XY / XYZ

Specifications vary by configuration.

PRODUCT VIDEO

See the KR009 in Action

Watch the KURAN KR009 product video for a closer look at this floor-mounted torque reaction arm.

WORKSTATION FIT

Is the KR009 Right for Your Workstation?

Consider the KR009 when your tightening application requires floor-mounted tool support, high torque capacity, and access to fastening points across a large work area.

Floor-Mounted Tool Support

Position the arm beside the workpiece when a floor-mounted support arrangement better suits your workstation layout.

High-Torque Tightening

Select from standard torque ratings of 500, 1000, 2000, and 5000 Nm to match your tightening requirements.

Extended Working Reach

Reach fastening points across larger work areas, with standard configurations offering working radii from 2.5 to 5 m.

Fastening at Different Heights

Use vertical tool travel to access higher and lower fastening points within the selected configuration’s working range.

Torque capacity, working radius, and vertical travel vary by configuration. Confirm reach against your fastening-point layout.

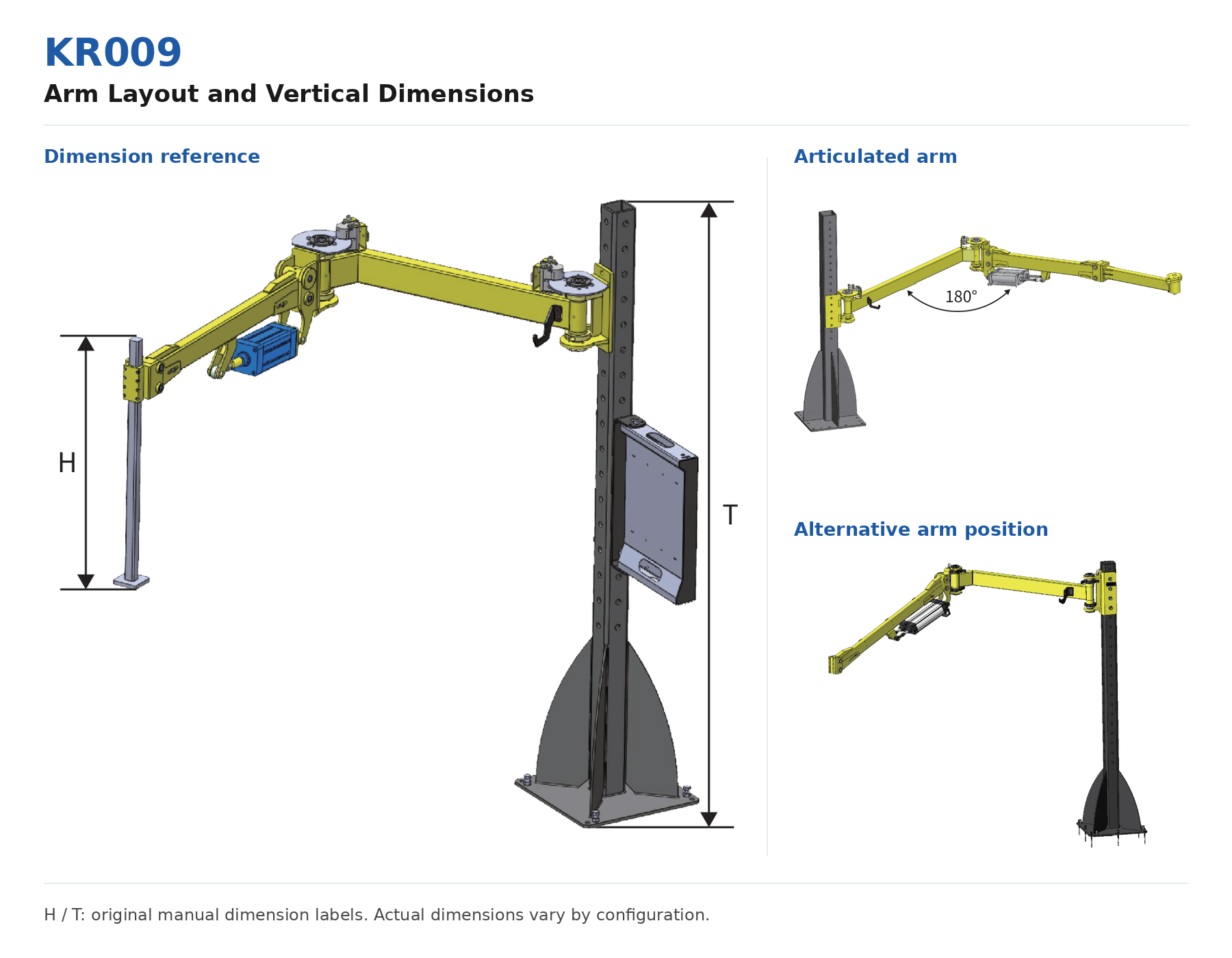

KURAN KR009 floor-mounted torque reaction arm layout with H and T dimension labels and articulated arm positions
H and T retain the original manual dimension labels. H is not identified in the manual as the Z-axis travel. Actual dimensions vary by configuration.

REACH & LAYOUT

Working Reach and Vertical Travel

Check the KR009’s working radius, vertical travel, and overall height against your workstation layout to select a configuration that can reach your fastening points.

Maximum Working Radius 2.5–5 m
Check the column location against the distribution of your fastening points to select a suitable reach.
Z-Axis Travel 1000–2000 mm
Match the vertical travel to your fastening-point heights and confirm the usable tool-height range.
Overall Height 2.7 or 3.0 m
Check overhead clearance and nearby equipment when planning the floor-mounted column position.

Confirm Arm Direction and Clearance

Select the left- or right-folding arrangement to suit your workpiece and operator access. Check joint movement, tool dimensions, and obstacles when confirming whether each fastening point is reachable.

KR009 — Arm Layout and Dimensions

Enlarged KR009 arm layout with H and T dimensions and articulated arm positions

CONFIGURATION GUIDE

Choose Your KR009 Configuration

Match your tightening torque, supported load, and fastening-point layout with a suitable KR009 configuration. Then confirm position detection, balance type, and arm folding direction with KURAN.

  1. Torque and Supported Load

    Confirm your maximum tightening torque and the total load the arm needs to support, including the tool and supported end components.

    Standard torque ratings

    500 / 1000 / 2000 / 5000 Nm

    Check the load limit for the selected model.

  2. Working Radius and Vertical Travel

    Check the distance and height of each fastening point relative to the planned column position. Select a standard configuration that covers your layout.

    Maximum working radius: 2.5–5 m

    Z-axis travel: 1000–2000 mm

    Torque, radius, and travel are linked in the standard models.

  3. Position Detection

    Decide whether your workstation requires position detection. For positioning applications, confirm the sensor configuration and KR002 controller integration.

    N: No sensors

    M: XY position detection

    MZ: XYZ position detection

  4. Balance Type and Arm Direction

    Confirm the balance type and folding direction to suit your workpiece position, operator access, and surrounding equipment.

    G: Pneumatic balance

    H: Rigid balance

    L / R: Left- / right-folding arm

Understanding the Model Code

KR009-GM-500R2500

KR009
Floor-mounted torque reaction arm
G
Pneumatic balance
M
XY position detection
500
Maximum torque: 500 Nm
R
Right-folding arm
2500
Horizontal arm radius: 2500 mm

Configuration availability: The manual’s standard specification table lists GN and GM models. Other code options, including MZ and H, as well as custom dimensions, require confirmation with KURAN. Confirm the complete configuration before ordering.

STANDARD MODEL DATA

KR009 Technical Specifications

Compare the standard KR009 models by torque capacity, effective load, working radius, overall height, and Z-axis travel to find a configuration that suits your workstation.

Swipe or scroll horizontally on smaller screens.

Model Max. Torque Nm Max. Effective Load kg Max. Working Radius mm Overall Height m Z-Axis Travel mmPosition Detection
KR009-GN-500R25005006025002.71000None
KR009-GM-500R25005006025002.71000XY
KR009-GN-1000R300010008030002.71500None
KR009-GM-1000R300010008030002.71500XY
KR009-GN-2000R400020009040002.72000None
KR009-GM-2000R400020009040002.72000XY
KR009-GN-5000R5000500020050003.02000None
KR009-GM-5000R5000500020050003.02000XY

Model codes: G denotes pneumatic balance. N denotes no sensors, and M denotes XY position detection, based on the manual’s model code guide. The listed models use the R right-folding arrangement.

Configuration limits: Each row represents a standard configuration. Torque capacity, load capacity, working radius, and vertical travel should be assessed together.

Other configurations: MZ position detection, H balance type, left-folding arrangements, and custom dimensions require confirmation with KURAN.

TOOL & CONTROL INTEGRATION

Tool Compatibility and Position Control

Configure the KR009 around your tightening tool and positioning requirements. KURAN can help confirm the tool connection, end components, and optional KR002 controller integration.

Tool Connection and Custom End Components

Match the KR009 with a suitable tool adapter or custom end component. Share your tool information so KURAN can confirm the connection and supported load.

Tool interface: Tool model, dimensions, and available mounting features.

Supported load: Tool weight and the weight of supported end components.

Working requirements: Maximum tightening torque and required tool orientation.

Optional Position Detection with KR002

The KR009 can work with the KR002 controller and positioning software when equipped with the appropriate sensors. Confirm the positioning requirements and controller arrangement for your workstation.

M configuration: XY position detection.

MZ option: XYZ position detection; configuration availability requires confirmation.

System integration: Confirm sensor connections, positioning software, and the required KR002 controller setup with KURAN.

Tool compatibility, sensor configuration, and controller integration must be confirmed for the intended application.

INSTALLATION PLANNING

Installation and Layout Planning

Plan the KR009 column position around your workpiece, fastening points, and operator access. Share your site layout with KURAN to confirm the mounting requirements and usable working range before installation.

Floor and Mounting Conditions

Confirm the floor structure, available base space, and fixing conditions at the proposed installation location. Foundation and anchoring requirements must follow the installation details for the selected configuration.

Column Position and Reach

Provide the workpiece dimensions and fastening-point locations, including their heights. Check that the planned column position allows the selected arm configuration to reach every required working point.

Clearance and Operator Access

Review the arm’s movement envelope, overhead clearance, nearby equipment, and operator routes. Allow sufficient space for tool movement, daily operation, and maintenance access.

Air Supply and System Connections

For G pneumatic-balance configurations, confirm the available air supply. If position detection is included, plan the controller location and cable routing. Obtain the specific connection requirements from KURAN.

Prepare Your Layout for Review

To review your layout, send KURAN a workstation drawing or site photos, workpiece dimensions, fastening-point locations, and tool specifications.

Discuss Your Layout

Frequently Asked Questions

 Find answers to common questions about KR009 capacity, working reach, tool compatibility, positioning, and installation.

Configure Your KR009 Workstation

Share your tool model, maximum tightening torque, total supported weight, and fastening-point layout, including distances and heights from the planned floor mounting position. KURAN will help recommend a suitable arm configuration, tool connection, and position-detection options. If some details are unknown, send the information you have.
