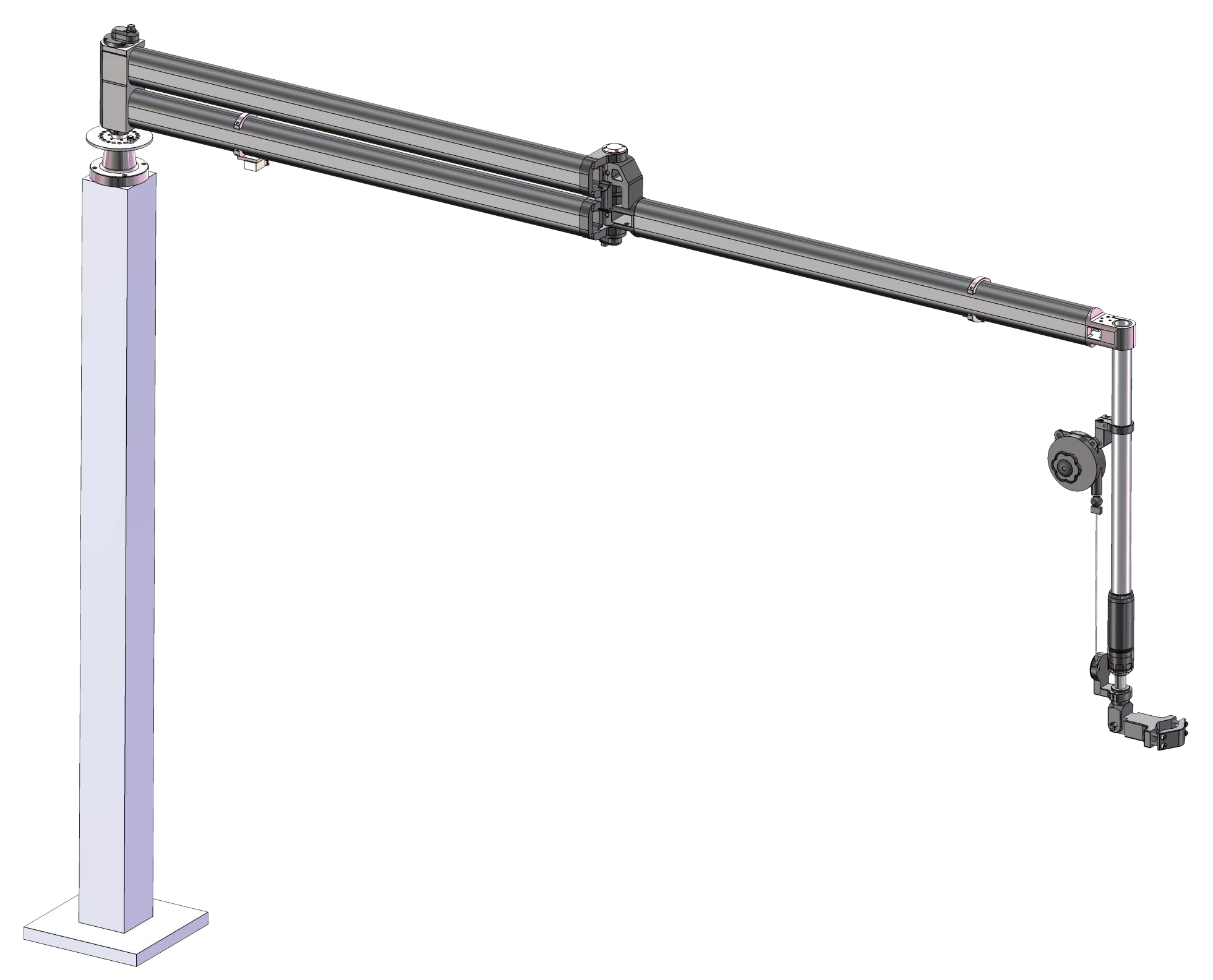

ARTICULATED TORQUE REACTION ARM
KR012 Long-Reach Carbon Fiber Torque Reaction Arm
For tightening applications up to 100 Nm, the KURAN KR012 combines an articulated carbon fiber structure with a maximum reach of 2 m. Choose top, side or column mounting, with optional XY or XYZ position detection to match your workstation requirements.
- APPLICATION TORQUE
- Up to 100 Nm
- MAXIMUM REACH
- Up to 2 m
- MOUNTING OPTIONS
- Top / Side / Column
- POSITION DETECTION
- Optional XY / XYZ
SELECTING YOUR KR012
Is the KR012 Right for Your Workstation?
Consider the KR012 when your workstation needs a wider tightening area, articulated movement and flexible mounting options. Select the configuration around your tool, fastening positions and position detection requirements.
A Wider Tightening Area
Reach options up to 2 m help accommodate fastening positions spread across a larger work area.
Tightening Within 100 Nm
Consider the KR012 for applications within 100 Nm, with the selected configuration matched to your tool and working reach.
Mounting to Suit Your Layout
Choose top, side or column mounting according to the available mounting space and workstation structure.
Optional Position Detection
Choose a version without sensors, or add XY or XYZ position detection when your process requires tool position feedback.
ARM STRUCTURE AND MOVEMENT

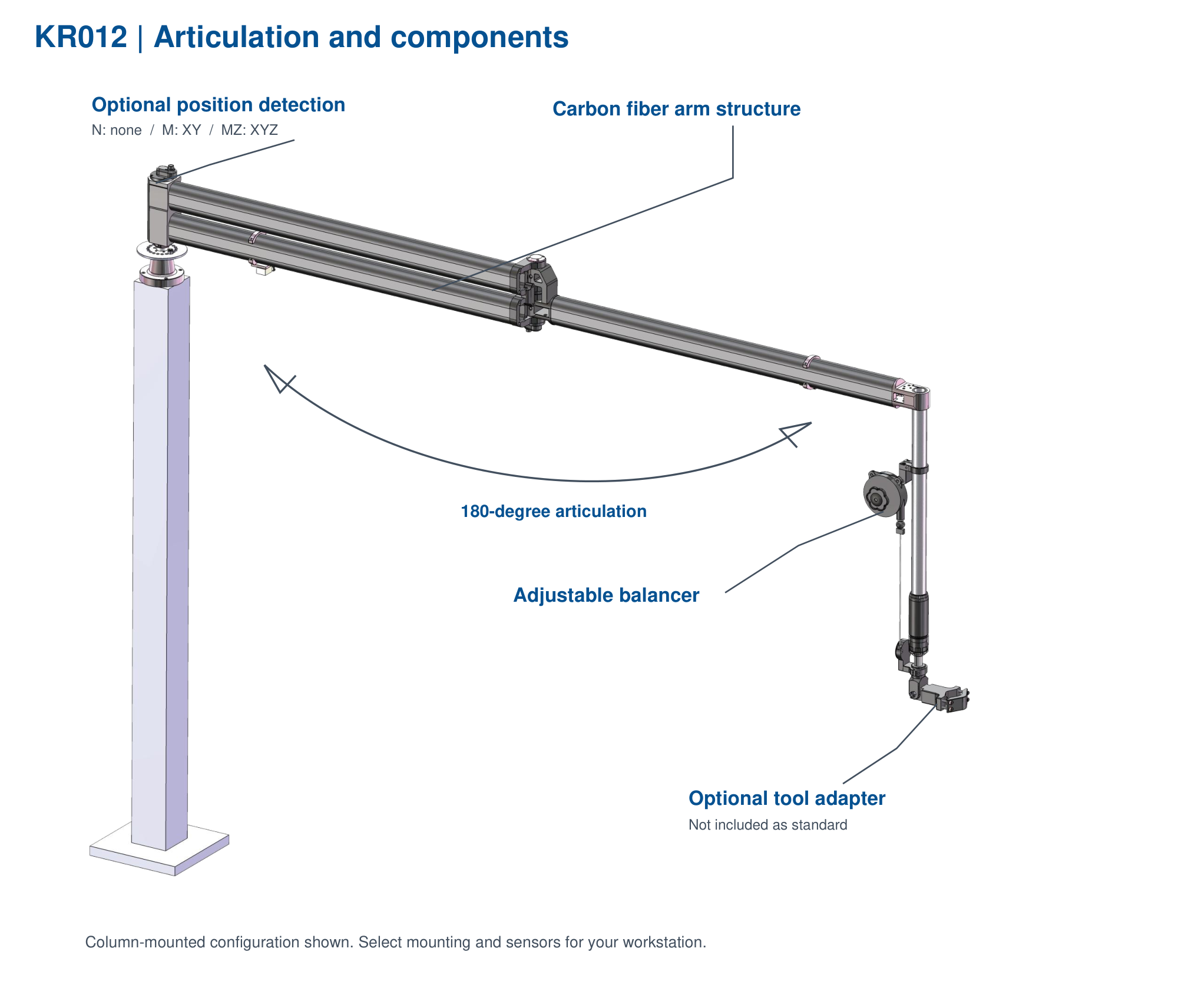

Long Reach with Articulated Movement
The KR012 combines a long-reach carbon fiber arm with an articulated structure. The manual illustrates 180-degree articulation, an adjustable balancer and an optional tool adapter, with position detection available in selected configurations.
Articulated Arm Structure
The illustrated 180-degree articulation allows the arm to fold and extend when moving between fastening positions.
Carbon Fiber Construction
Carbon fiber is used in the arm structure to support a lightweight, long-reach design.
Adjustable Balancer
The balancer provides adjustable tool support. Confirm its suitability for the weight of your tool and adapter.
Optional Tool Adapter
Select the adapter to match your tightening tool and mounting interface. The adapter is not included as standard.
CONFIGURATION OPTIONS
Choose Your KR012 Configuration
Configure the KR012 around your fastening positions, mounting space and position detection needs. Select the working reach, vertical travel and folding direction, then confirm the mounting and sensor options for your workstation.
Working Reach and Vertical Travel
Choose the horizontal radius and Z-axis travel to suit your fastening layout and required vertical movement.
Horizontal Radius
Z-Axis Travel
Left- or Right-Folding Arm
Choose left-folding or right-folding according to the fastening positions and available movement space.
Folding Direction
Mounting Arrangement
Select side mounting, column mounting or top mounting to suit your workstation structure.
Mounting Options
Position Detection Options
Choose a version without sensors, or select XY or XYZ position detection according to your process requirements.
Sensor Configuration
Output Options for Sensor-Equipped Configurations
Share your tool model, tool weight and fastening layout with KURAN to confirm a suitable configuration. Column height and carbon fiber pushrod length can be customized.
INSTALLATION OPTIONS
Three Mounting Options
The KR012 supports top, side and column mounting. Select the arrangement according to your workstation structure, fastening height and the space needed for arm movement.

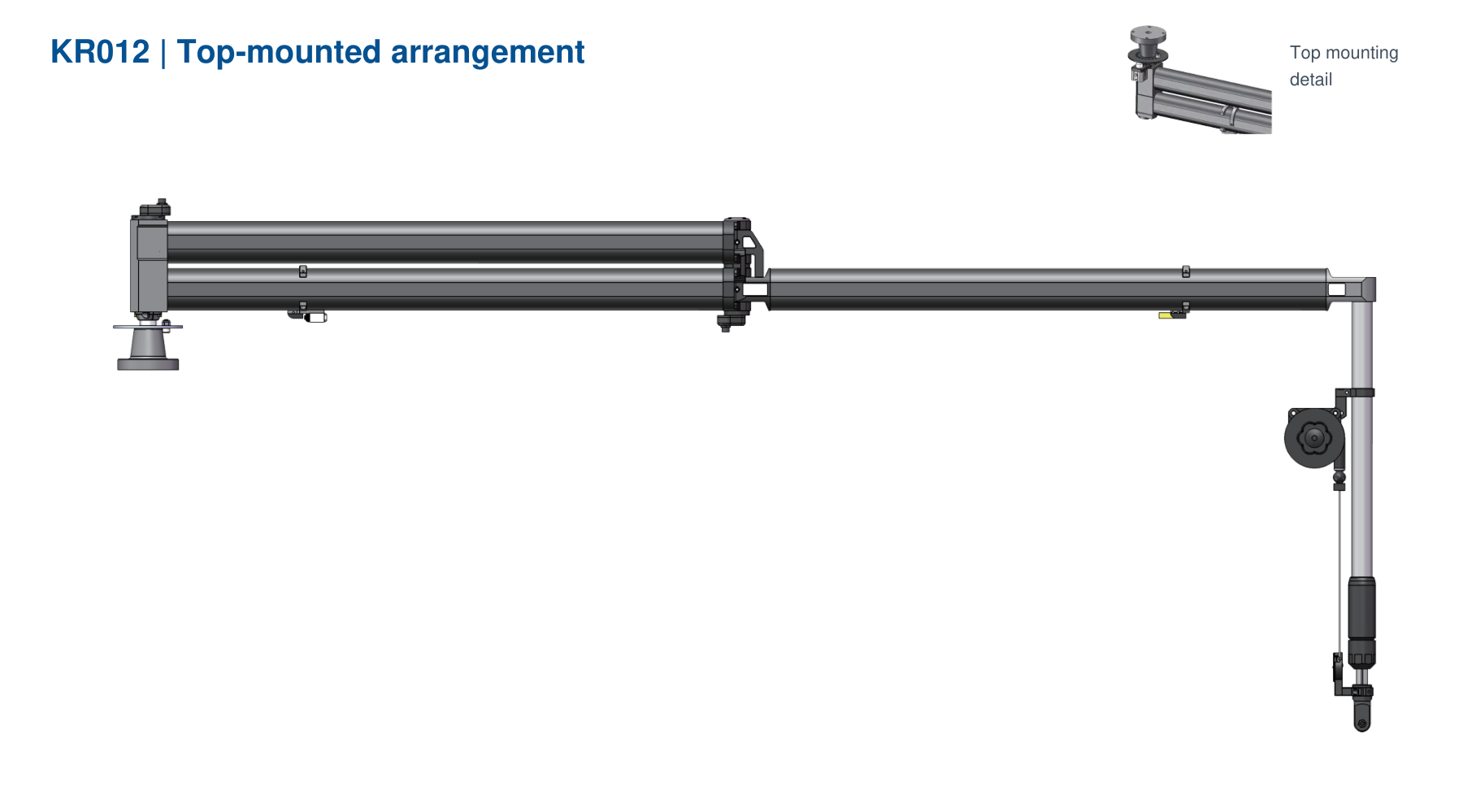

Top Mounting
For workstations with a suitable overhead mounting point. Confirm the mounting height, arm movement clearance and tool reach.

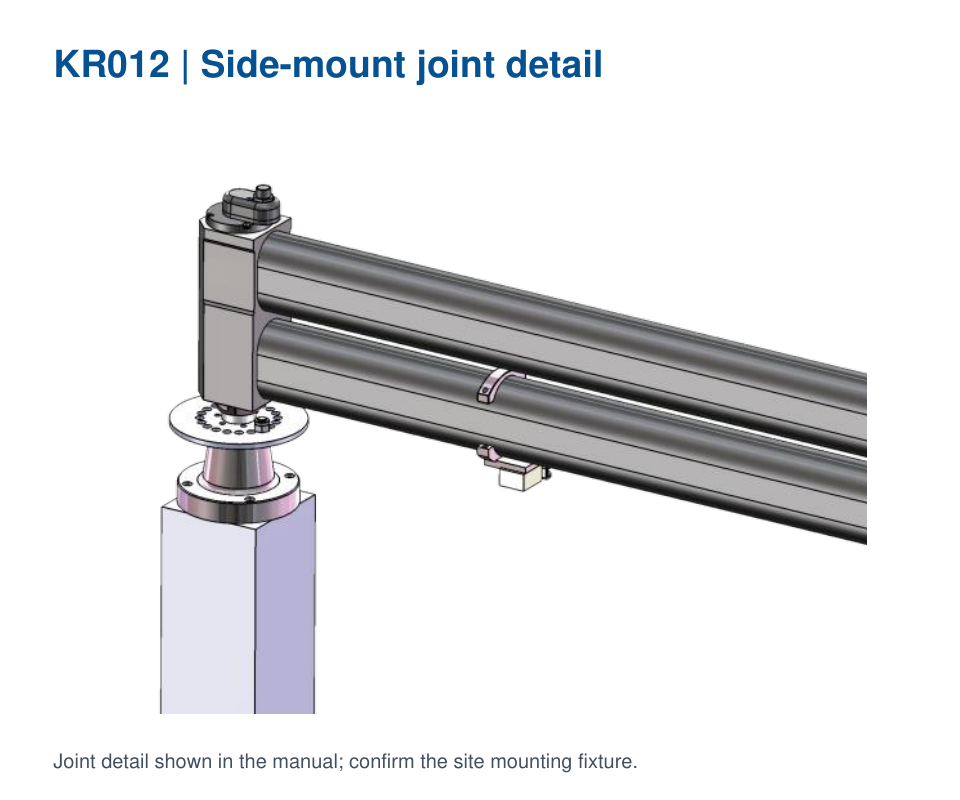

Side Mounting
Use a suitable side mounting surface or bracket. Confirm the mounting interface and clearance around the arm’s folding path.
Column Mounting
Column height can be customized. Match the height to your fastening positions and required tool-side movement.
KR012 PRODUCT DATA
Technical Specifications
Review the KR012’s application torque, working reach and configuration options below. Share your tool and workstation details with KURAN to confirm the final specification.
| Parameter | Specification |
|---|---|
| Arm Structure | Articulated carbon fiber arm |
| Application Torque | Up to 100 Nm |
| Maximum Reach | Up to 2000 mm |
| Horizontal Radius Options | 1000 / 1250 / 1500 / 2000 mm |
| Z-Axis Travel Options | 300 / 400 / 500 mm |
| Folding Direction | Left-folding / Right-folding |
| Mounting Options | Top / Side / Column mounting |
| Position Detection | No sensors / XY / XYZ |
| Sensor Output Options | Analog 0–10 V Digital 485 communication |
| Column Height | Customizable |
| Carbon Fiber Pushrod Length | 300 mm; customizable |
| Tool Adapter | Optional; not included as standard |
Final selection depends on the tool and adapter weight, fastening layout and mounting conditions.
DIMENSIONS AND INSTALLATION
Working Dimensions and Mounting Interfaces
Review the arm layout, column-mounted dimensions and mounting interfaces below. Confirm the dimensions for your selected configuration against the workstation layout before installation.

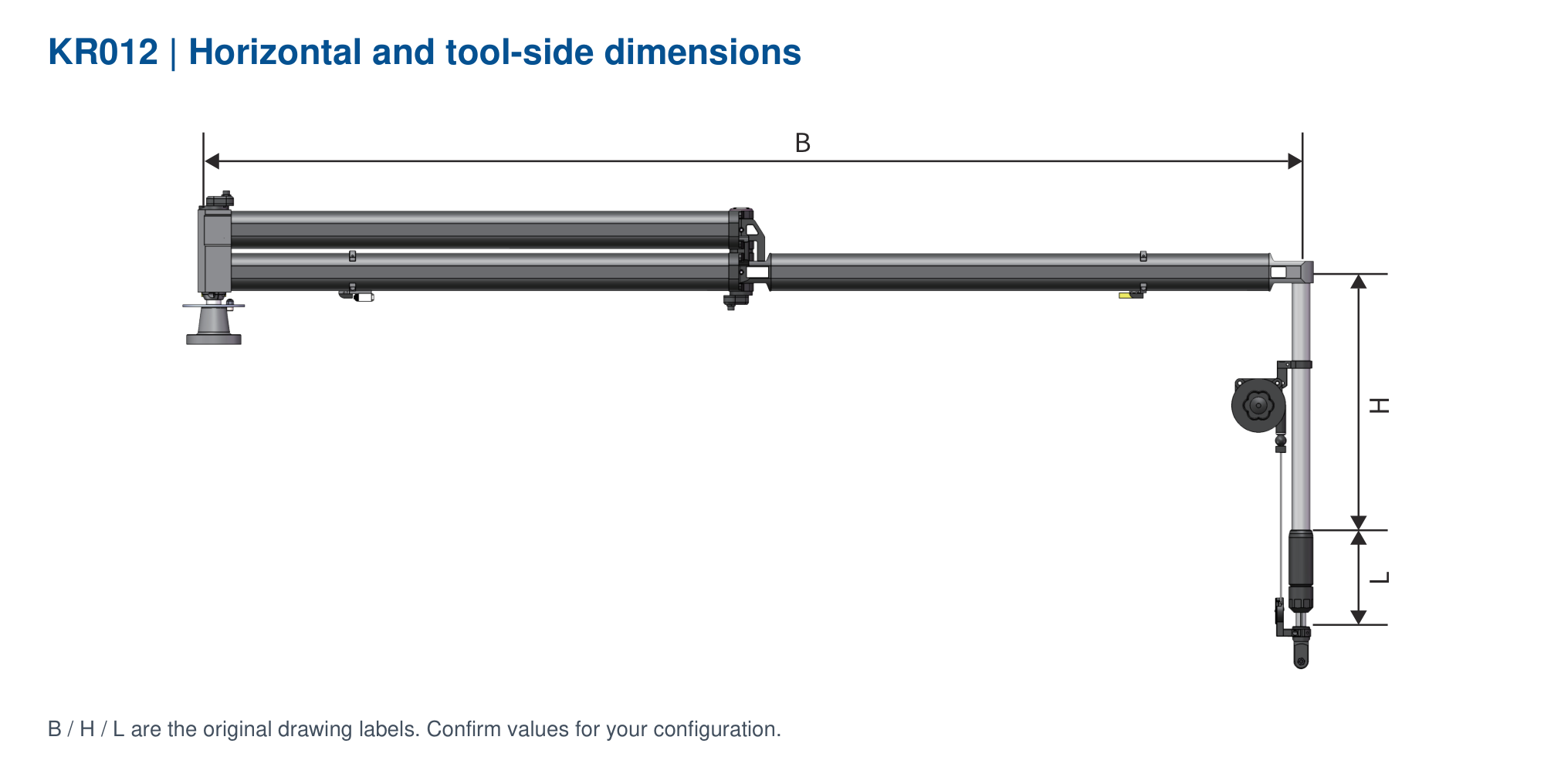

Horizontal and Tool-Side Dimensions
Review the horizontal arm layout and tool-side dimensions shown in the drawing.

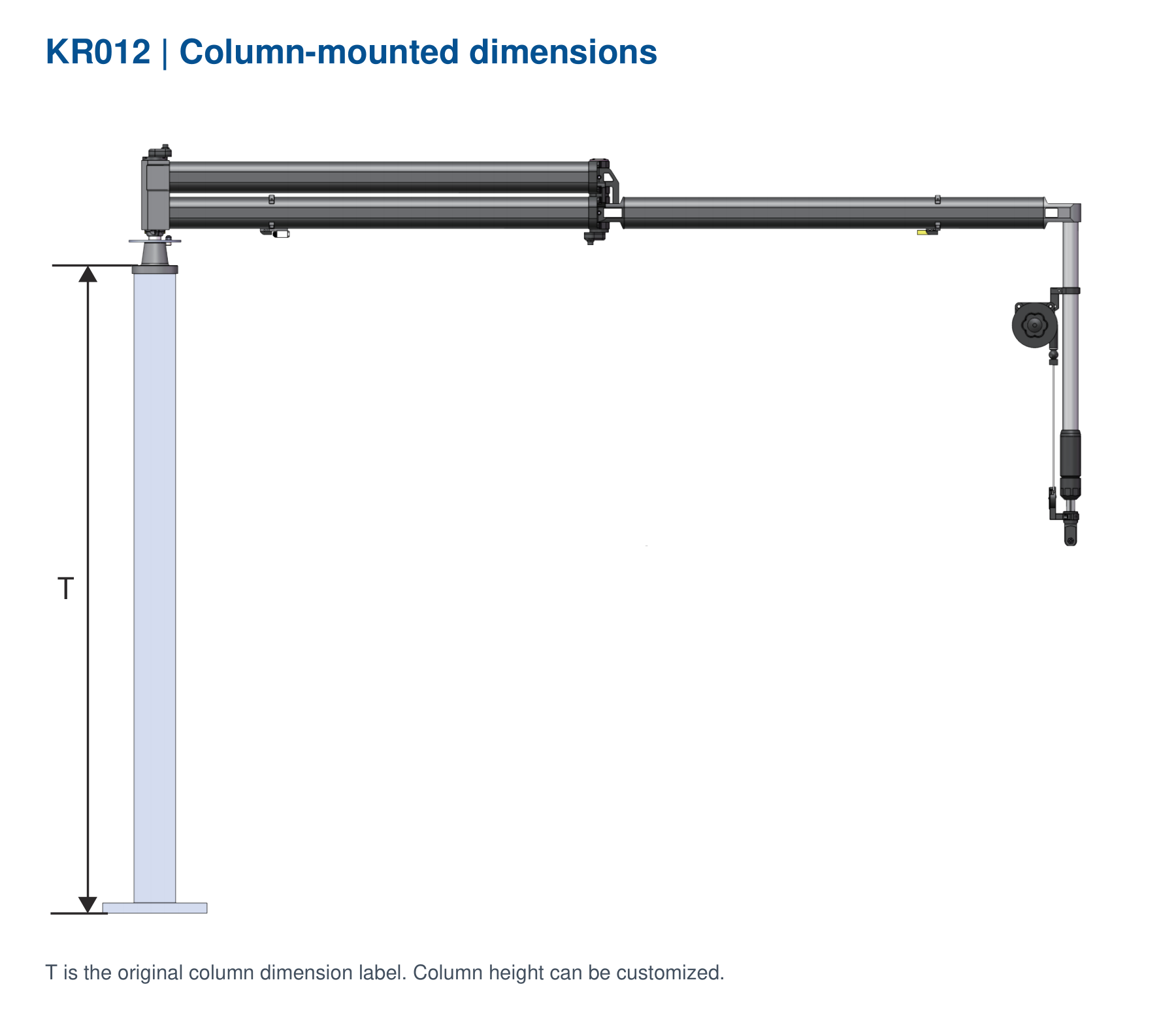

Column-Mounted Dimensions
Confirm the column height and arm position against your fastening height and workstation layout.

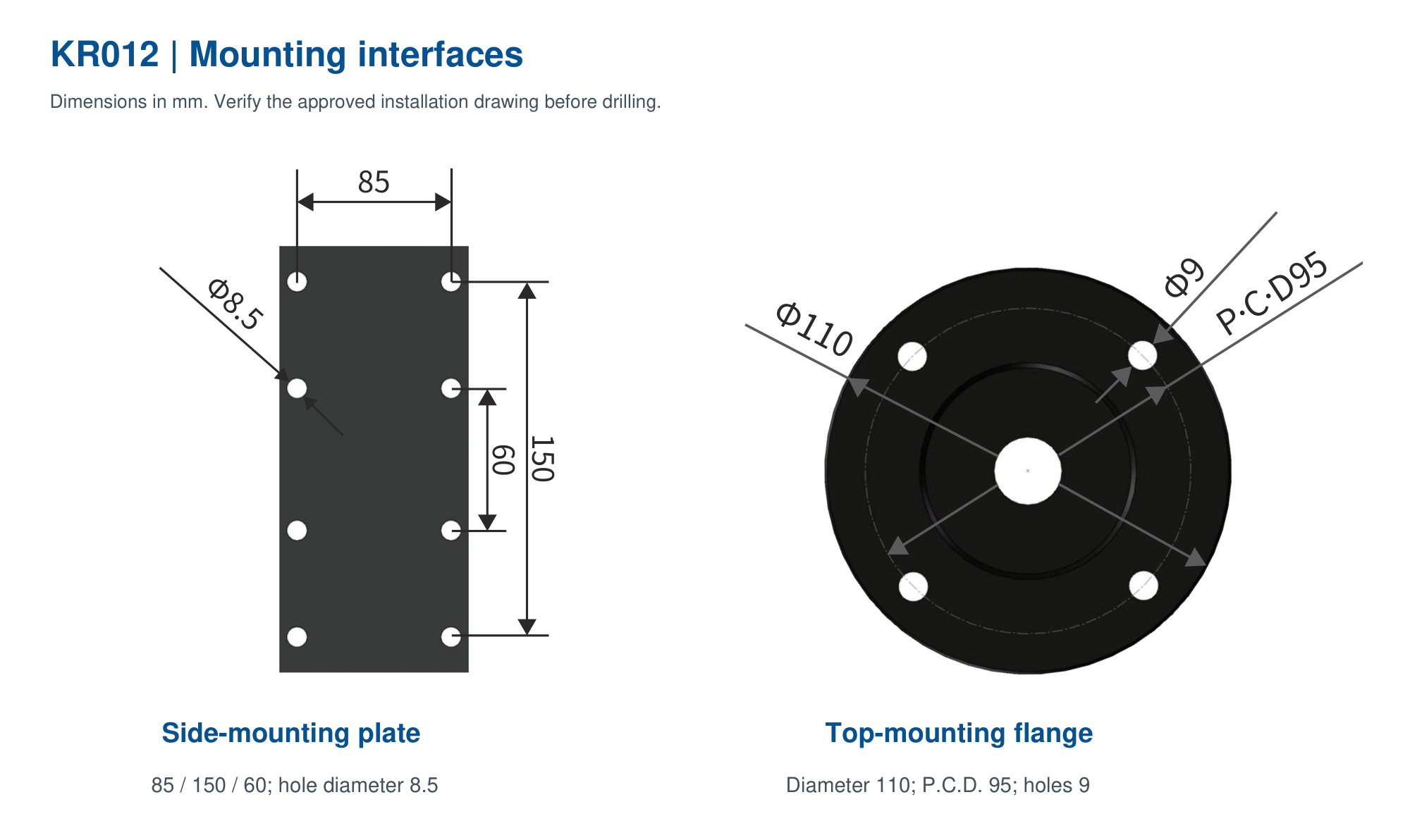

Mounting Plates and Hole Patterns
Review the side-mounting plate and top-mounting flange interfaces. Mounting dimensions are shown in millimeters.
Final dimensions and mounting hole requirements should be confirmed using the approved drawing for your selected configuration.
TOOL MATCHING AND SYSTEM INTEGRATION
Tool Compatibility and System Integration
Match the KR012 to your tightening tool and workstation requirements. Confirm the adapter interface, total tool-and-adapter weight and any position feedback connections before selecting the final configuration.
Tool and Adapter Matching
The optional adapter should match your tool’s mounting interface and working orientation. Share the tool model, dimensions and total tool-and-adapter weight with KURAN for confirmation.
Tool Information to Provide
- Tool model and mounting dimensions
- Total tool-and-adapter weight
- Tightening torque and working orientation
Position Feedback and Control Interface
For processes that require position feedback, select XY or XYZ detection and confirm the sensor output requirements with your control system. Available options include analog 0–10 V and digital 485 communication.
Control Requirements to Confirm
- No detection, XY or XYZ feedback
- Sensor output and receiving interface
- Controller model and required position-based logic
TOOL MOUNTING

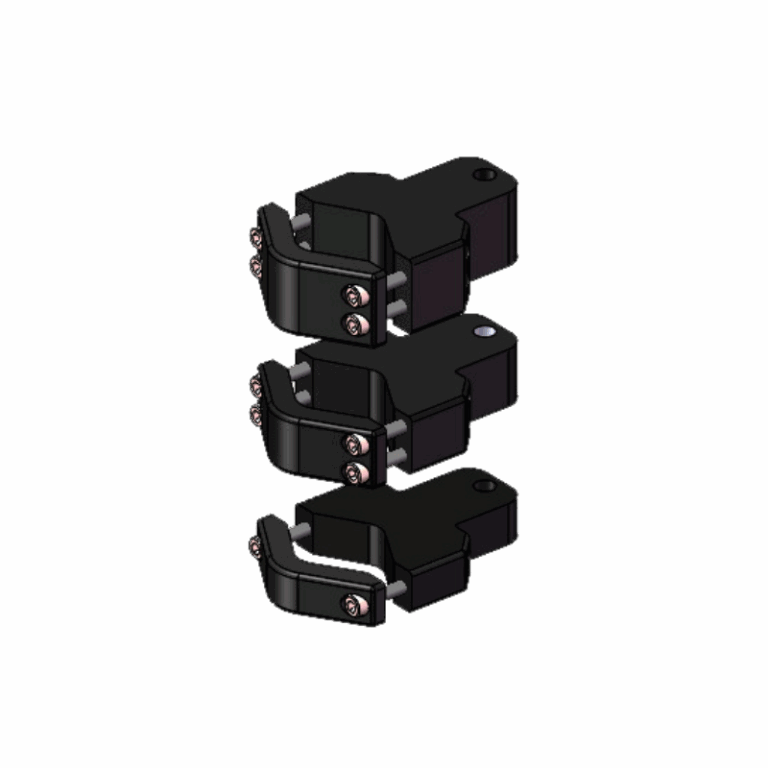

KR005 Tool Adapters
Explore KURAN tool adapters for connecting tightening tools to torque reaction arms. Confirm the adapter model, mounting dimensions and working orientation for your selected KR012 configuration.
The KR012 tool adapter is optional and is not included as standard.
View Tool Adapters
WORKSTATION CONTROL

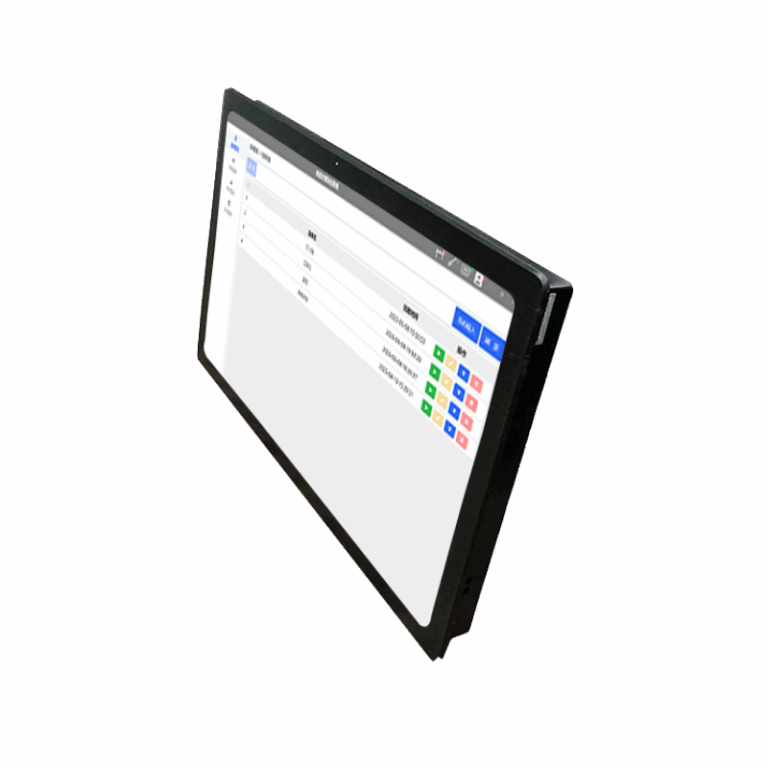

KR002 Tightening Controllers
Explore KR002-B01 field control and KR002-H01 supervisory control options. Confirm sensor interfaces, tool communication and required process functions when integrating a KR012 with position detection.
Select the control level according to your workstation process and system integration requirements.
Explore Control SystemsConfirm adapter fit and control interfaces with KURAN for your selected KR012 configuration. Position-based tool control depends on the selected sensors, controller, tool interfaces and system configuration.
Frequently Asked Questions
Find answers to common questions about KR012 torque capacity, working reach, mounting options, tool adapters and optional XY or XYZ position detection.
The KR012 is designed for tightening applications up to 100 Nm. Confirm the selected configuration against your tool, working reach and mounting conditions.
Maximum reach is up to 2 m. Horizontal radius options include 1000, 1250, 1500 and 2000 mm.
Top, side and column mounting are available. Select the arrangement according to your workstation structure and available movement space.
N has no position sensors. M provides XY position detection, while MZ provides XYZ position detection.
No. The tool adapter is optional and should be selected to match your tightening tool and mounting interface.
Connection depends on the selected sensors and receiving interface. Confirm the analog 0–10 V or digital 485 communication requirements with KURAN.
Yes. Column height and carbon fiber pushrod length can be customized. Provide your fastening height and workstation layout for confirmation.
Share your tool model, tightening torque, tool-and-adapter weight, fastening layout, mounting preference and position detection requirements.
Configure Your KR012 Torque Arm
Share your tool model, maximum tightening torque, total tool-and-adapter weight and fastening-point layout. Include the required reach, working height, preferred mounting method and any XY or XYZ position detection needs. KURAN will review the details to recommend a suitable KR012 configuration.
